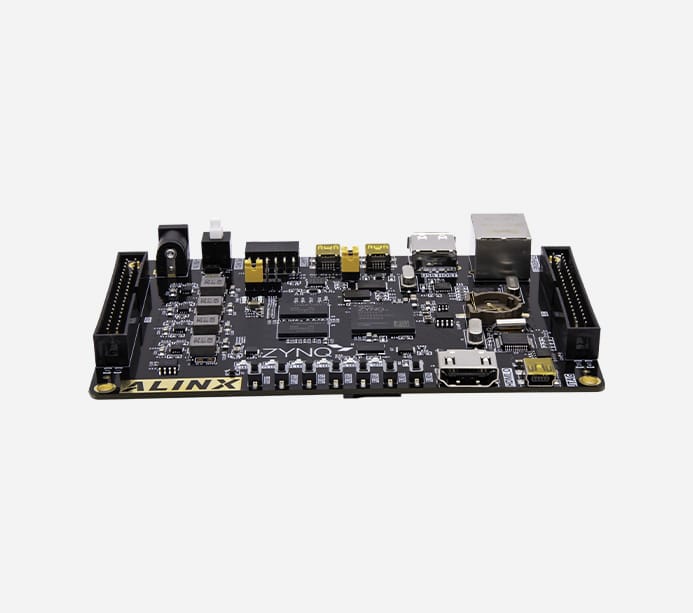

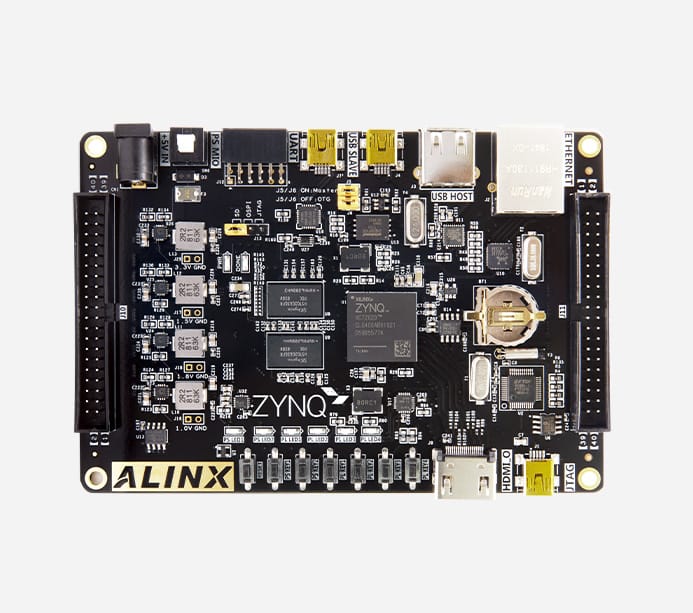

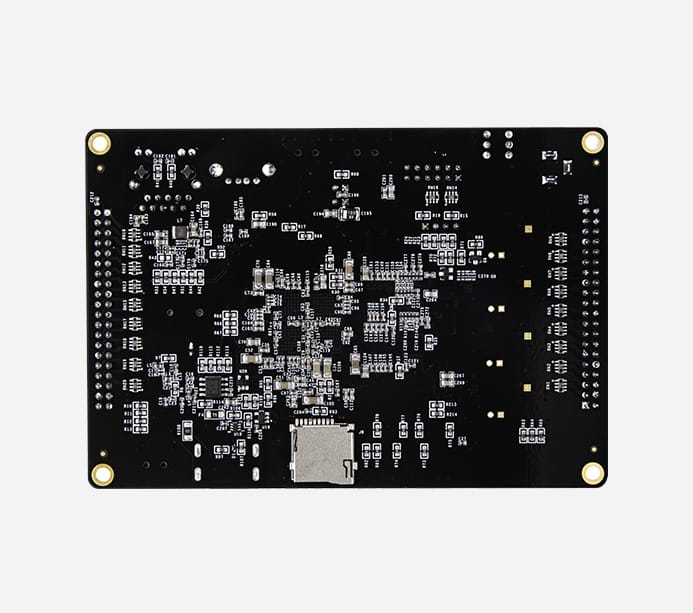

XILINX Zynq-7000 SoC FPGA Development Board XC7Z020 XC7Z020
- Call for Pricing
Description of product
Main Parameters
FPGA Board AX7020
FPGA Chip XA7Z020-1CLG400I / XC7Z020-2CLG400I
Kernel Dual-Core ARM Cortex-A9
RAM DDR3 1GB, 32bit Bus, Data Rate 1066Mbps
Logic Cells 85K
Look-Up Tables ( LUTs ) 53,200
CLB Flip-Flops 106,400
Multiplier 220
Block RAM 4.9Mb
PS MIO 8
PL IO 94
Interface and Function
JTAG 1 USB JTAG Interface Onboard, No Need to Purchase Xilinx Downloader Use USB Cable and Onboard JTAG, Debug and Download ZYNQ System
Gigabit Ethernet 10 / 100 / 1000M Adaptive Ethernet Interface with RJ-45 Interface Used for Data Exchange with Computers and Other Network Equipment
HDMI HDMI Image and Video Output Interface, Supports 1080@60Hz
USB HOST Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk
USB OTG Used for OTG Communication with PC or USB Device
ＵSB Uart Used for Serial Communication with PC or External Devices
Real Time Clock RTC with a Battery Holder, The Battery Model is CR1220 （Voltage 3V, buy it yourself）
EEPROM EEPROM 24LC04 with IIC Interface
LED 6 User LEDs, 2 Controlled by PS, 4 Controlled by PL
Keys 7 Keys, 1 CPU Reset Key, 2 PS Control keys, 4 PL Control Keys
Crystal Oscillator 33.333Mhz, Provide Stable Clock Source for the PS System 50MHz, Provide Extra Clock for PL Logic
TF Card Slot Insert Micro SD TF Card, Store Operating System Image and File System
PMOD 12-Pin Connectors ( 0.1 inch Pitch ) , Expand the MIO of ZYNQ PS System
Expansion Port Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the IOs of ZYNQ PL Connect with 7 inch LCD Screen, Camera, AD / DA and Other Modules
