6574176726eb16868c3713b6 XILINX Zynq-7000 SoC ARM FPGA Development Board XC7Z020 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6574153ed37f6761d93438c5/ax7021b-1.jpg

Core Board Parameters

FPGA Board AX7021

FPGA Chip XC7Z020-2CLG484I

Kernel Dual-Core ARM Cortex-A9, Main Frequency 767MHz

Speed Grades -2

Working Temperature -40°c~85°c

Look Up Tables ( LUTs ) 53,200

CLB Flip-Flops 106,400

eMMC FLASH 8GB

PS MIOs ( ARM ) 39

LVDS 48

RAM DDR3 1GB, Data Rate 1066Mbps

Chip Level Industrial Grade

Logic Cells 85K

Multiplier 220

Block RAM 4.9Mb

QSPI FLASH 256MBit

PL IOs ( FPGA ) 198

Voltage Adjustable IOs 100

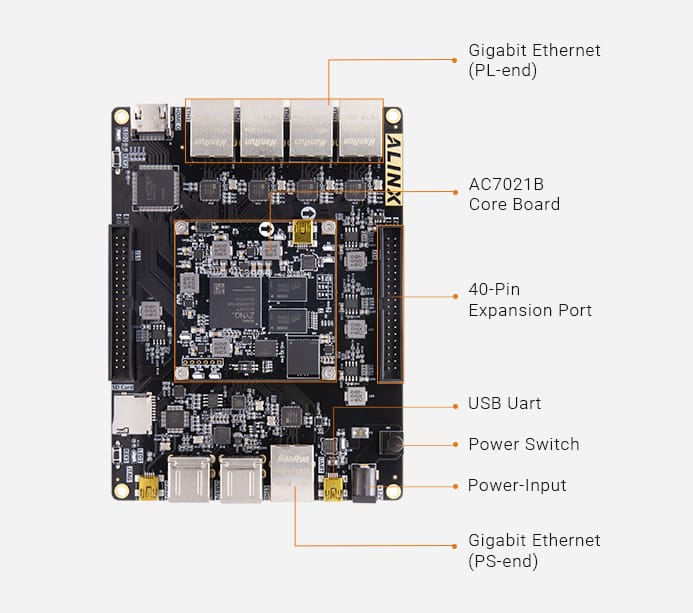

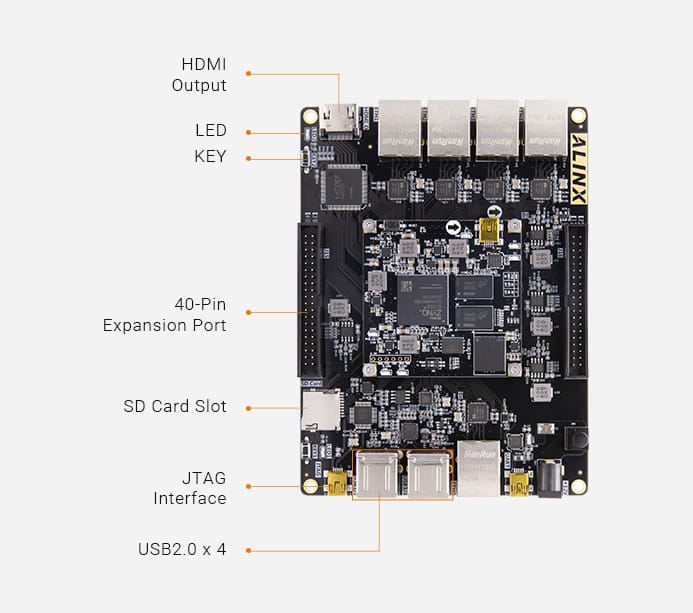

Interface and Function



DDR3 Two 512MB DDR3, 32bit Bus, Data Rate 1066Mbps

QSPI Flash256Mbit, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

Gigabit Ethernet 5×10/100M/1000M Ethernet RJ-45 Interfaces for Ethernet Data Exchange

JTAG 1 USB JTAG Interface Onboard, No Need to Purchase Xilinx Downloader

HDMI Output HDMI Video Output Interface, Support up to 1080P@60Hz Output, Support 3D Output

USB 2.0 x 4 Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB Uart Used for Data Exchange with Computers and Other Network Equipment

Crystal Oscillator 33.333Mhz Provide Stable Clock Source for the PS System
50MHz Provide Extra Clock for PL Logic

TF Card Slot Insert Micro SD TF Card, Store Operating System Image and File System

LED 2 LED lights, 1 Controlled by PS, 1 Controlled by PL

kEYs 2 Keys and 1 Reset Key, 1 PS Control key, 1 PL Control Key

40-Pin Expansion Ports Two 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules)



Power Supply Parameters

Voltage Input +12V

Current Input Max. Current 2A

 DATA SHEET

TT-XIL-AX7021/AX7021B
in stockINR
Xilinx
1 1

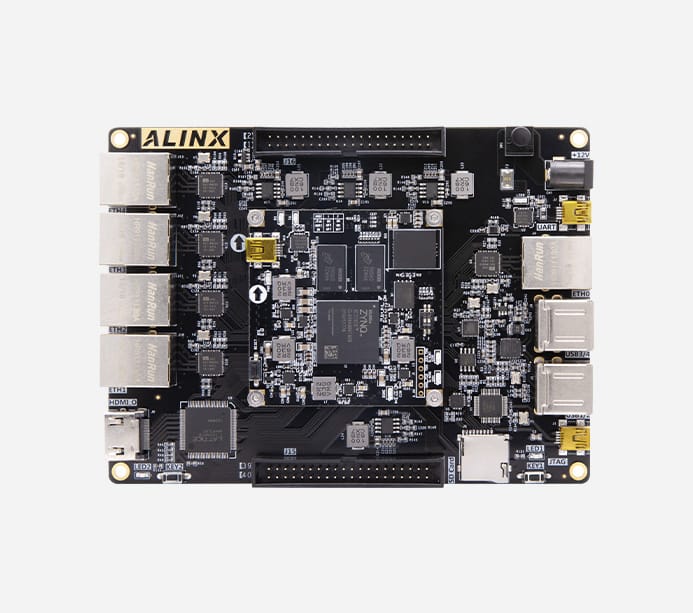

XILINX Zynq-7000 SoC ARM FPGA Development Board XC7Z020

XILINX Zynq-7000 SoC ARM FPGA Development Board XC7Z020

Sku: TT-XIL-AX7021/AX7021B

Product Enquiry

Sold By: tenettech
Features
  • Call for Pricing

Description of product

Core Board Parameters

FPGA Board AX7021

FPGA Chip XC7Z020-2CLG484I

Kernel Dual-Core ARM Cortex-A9, Main Frequency 767MHz

Speed Grades -2

Working Temperature -40°c~85°c

Look Up Tables ( LUTs ) 53,200

CLB Flip-Flops 106,400

eMMC FLASH 8GB

PS MIOs ( ARM ) 39

LVDS 48

RAM DDR3 1GB, Data Rate 1066Mbps

Chip Level Industrial Grade

Logic Cells 85K

Multiplier 220

Block RAM 4.9Mb

QSPI FLASH 256MBit

PL IOs ( FPGA ) 198

Voltage Adjustable IOs 100

Interface and Function



DDR3 Two 512MB DDR3, 32bit Bus, Data Rate 1066Mbps

QSPI Flash256Mbit, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

Gigabit Ethernet 5×10/100M/1000M Ethernet RJ-45 Interfaces for Ethernet Data Exchange

JTAG 1 USB JTAG Interface Onboard, No Need to Purchase Xilinx Downloader

HDMI Output HDMI Video Output Interface, Support up to 1080P@60Hz Output, Support 3D Output

USB 2.0 x 4 Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB Uart Used for Data Exchange with Computers and Other Network Equipment

Crystal Oscillator 33.333Mhz Provide Stable Clock Source for the PS System
50MHz Provide Extra Clock for PL Logic

TF Card Slot Insert Micro SD TF Card, Store Operating System Image and File System

LED 2 LED lights, 1 Controlled by PS, 1 Controlled by PL

kEYs 2 Keys and 1 Reset Key, 1 PS Control key, 1 PL Control Key

40-Pin Expansion Ports Two 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules)



Power Supply Parameters

Voltage Input +12V

Current Input Max. Current 2A

 DATA SHEET
