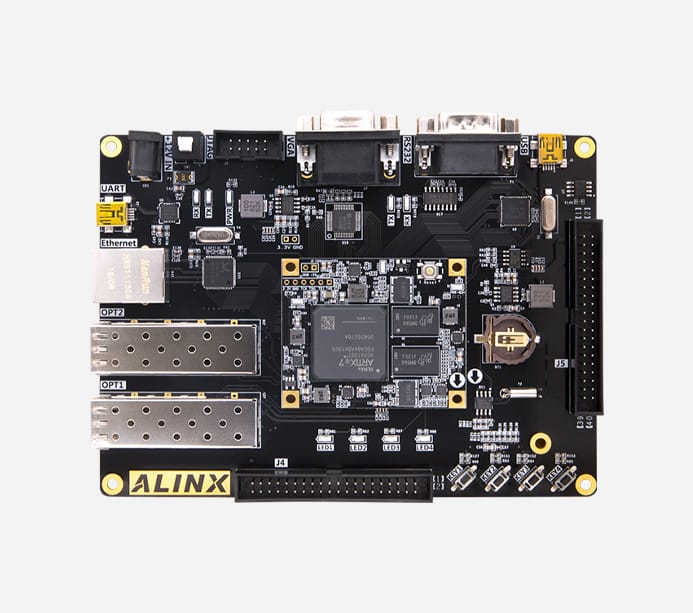

6579566a0a573e14521c38f2 XILINX Artix-7 SFP FPGA Development Board XC7A100T XC7A100T https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657955762708f6f154f9da3f/d1.jpg

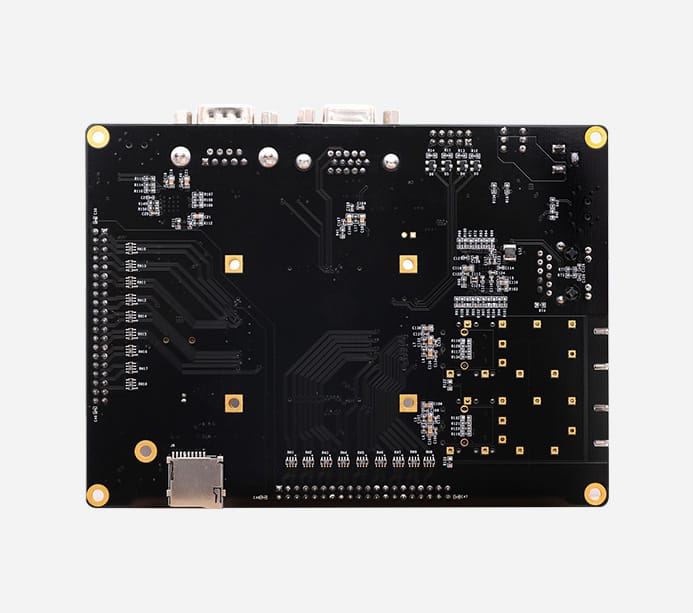

Product Parameters

Core Board Parameters

FPGA Chip XC7A100T-2FGG484I

Logic Cells 101440

Look Up Tables ( LUTs ) 15850

CLB Flip-Flops 126800

Block RAM 4860Kb

DSP 240

QSPI FLASH 128Mb

DDR3 2 Pics, Totally 1GB

Total IOs 180

Adjustable Voltage IO 100

Logic cells 101440

XADC 12bit 1Mbps AD

Chip Level Industrial Grade

Working Temperature -40°c ~ 85°c

Speed Grades -2

Active Differential Crystal  2

Number of Differential Pairs 48

Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

SFP Interface 2-way High-Speed SFP Interface, the Receiving and Transmitting speed of Each Channel is up to 6.6 Gb/s

Gigabit Ethernet 10 / 100 / 1000M Ethernet with RJ-45 Interface for Ethernet Data Exchange

JTAG  10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

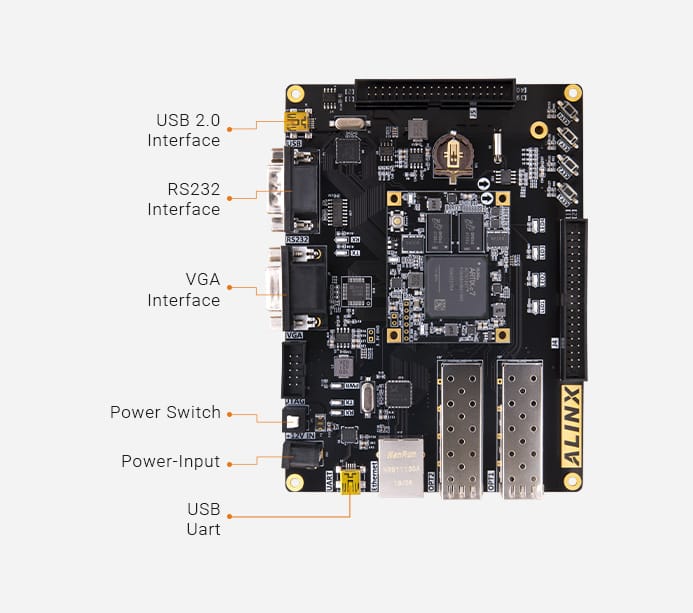

VGA 1 channel VGA output interface, 16 bit color VGA analog output, RGB 565 format

RS232 Used for Data Communication with Computer or Other Devices

USB 2.0 Used for USB 2.0 High Speed Communication with PC

USB Uart Used for Serial Communication with PC or External Devices

Real Time Clock RTC with a Battery Holder, The Battery Model is CR1220( Buy it yourself )

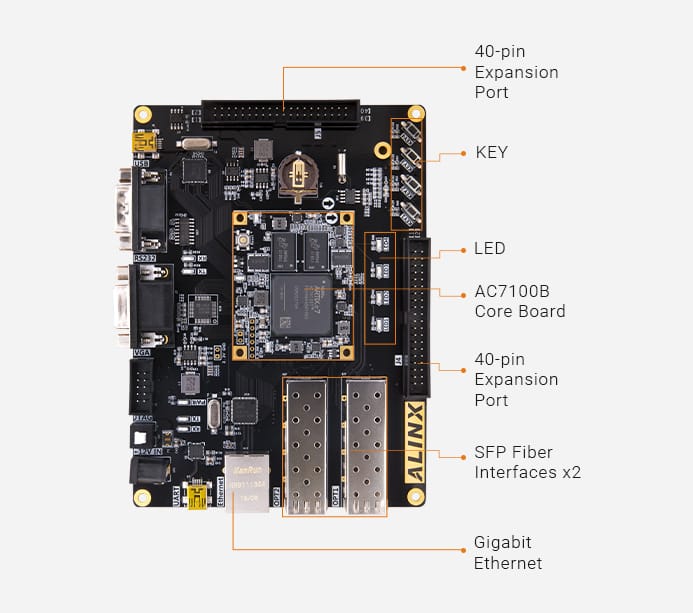

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support SD Mode and SPI Mode

LED 5 User LEDs( 1 LED in Core Board, 4 LEDs in the Carrier Board )

KEYs 4 User KEYs, 1 Reset Key ( in the Core Board )

Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 3A
