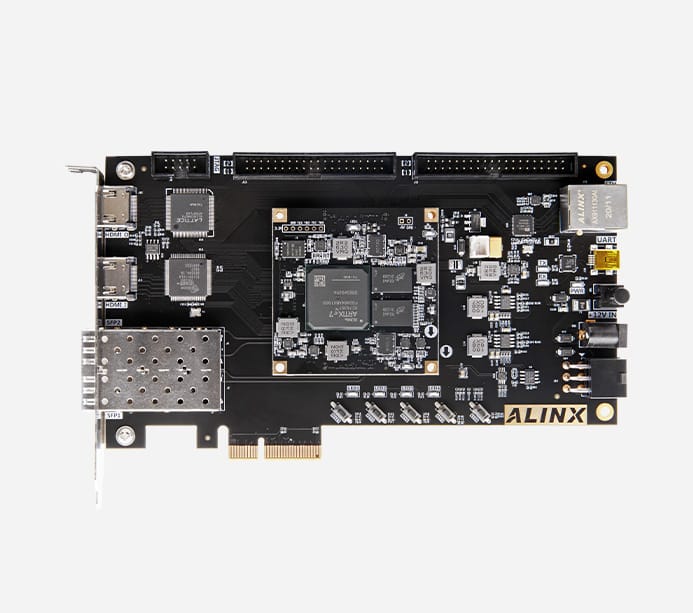

657a9f5c3d27d60ea421ca87 XILINX Artix-7 PCIE SFP FPGA Development Board XC7A35T XC7A35T https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657a9e4cbb23252b9db7ac2f/d3.jpg

Product Parameters

Core Board Parameters

FPGA Chip XC7A35T-2FGG484I

Logic Cells 33280

Look Up Tables ( LUTs ) 5200

CLB Flip-Flops 41600

Block RAM 1800KB

DSP 90

Expansion IOS 146 IOs( 3.3V Level )

Speed Grades -2

Chip Level Industrial Grade

Working Temperature -40°c~85°c

PCIe Gen2 1

XADC 12bit, 1Mbps AD

Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 128Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

PCIe2.0 Interface Provides a Standard PCIe 2.0 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

SFP x2 The Receiving and Transmitting speed of Each Channel is up to 6.6Gb/s

Gigabit Ethernet 10 / 100M / 1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI input / Output HDMI Input and Output Interface, Supports 1080@60Hz, 3D Output

USB Uart Used for Serial Communication with PC or External Devices

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LEDs 5 User LEDs( 1 LED in Core Board, 4 LEDs in the Carrier Board )

KEYs 4 User Keys, 1 Reset Key

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ) Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules )

Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 5A

DATA SHEET

TT-XIL-AX7A035/AX7A035B
in stock INR
Xilinx
1 1

XILINX Artix-7 PCIE SFP FPGA Development Board XC7A35T XC7A35T

Sku: TT-XIL-AX7A035/AX7A035B

Product Enquiry

Sold By: tenettech
Features
  • Shipping in 12-14 Working Days

Description of product

Product Parameters

Core Board Parameters

FPGA Chip XC7A35T-2FGG484I

Logic Cells 33280

Look Up Tables ( LUTs ) 5200

CLB Flip-Flops 41600

Block RAM 1800KB

DSP 90

Expansion IOS 146 IOs( 3.3V Level )

Speed Grades -2

Chip Level Industrial Grade

Working Temperature -40°c~85°c

PCIe Gen2 1

XADC 12bit, 1Mbps AD

Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 128Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

PCIe2.0 Interface Provides a Standard PCIe 2.0 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

SFP x2 The Receiving and Transmitting speed of Each Channel is up to 6.6Gb/s

Gigabit Ethernet 10 / 100M / 1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI input / Output HDMI Input and Output Interface, Supports 1080@60Hz, 3D Output

USB Uart Used for Serial Communication with PC or External Devices

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LEDs 5 User LEDs( 1 LED in Core Board, 4 LEDs in the Carrier Board )

KEYs 4 User Keys, 1 Reset Key

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ) Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules )

Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 5A

DATA SHEET
