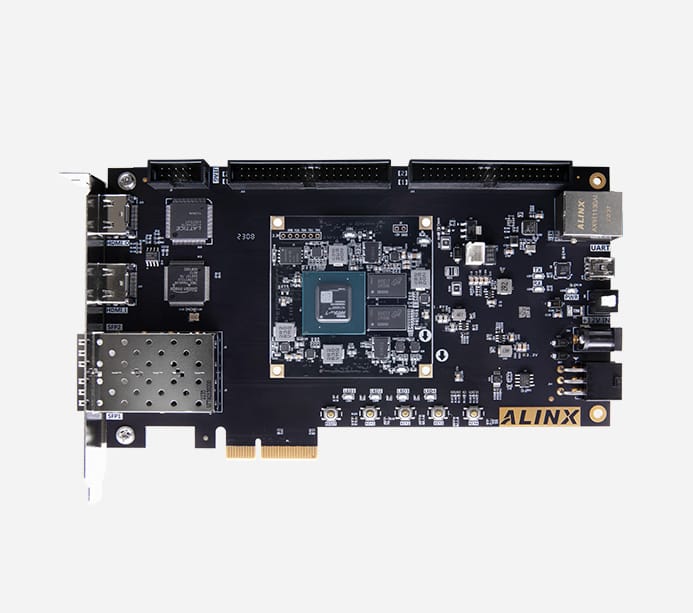

6579475d975be51d85699a56 XILINX Artix-7 PCIe SFP FPGA Development Board XC7A200T XC7A200T https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6579469f409bf0f0f9c518e3/ax7a200b-1.jpg

Product Parameters

Core Board Parameters

FPGA Chip XC7A200T-2FBG484I

Logic Cells 215360

Look Up Tables ( LUTs ) 33650

CLB Flip-Flops 269200

Block RAM 13140KB

DSP 740

Expansion IOS 180(3.3V)

Speed Grades -2

Chip Level Industrial Grade

Working Temperature -40°c~85°c

PCIe Gen2 Supports PCI Express 2.0 x4

XADC 12bit, 1Mbps AD

Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 256Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

 Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

PCIe2.0 Interface Provides a Standard PCIe 2.0 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

SFP x2 The Receiving and Transmitting speed of Each Channel is up to 6.6Gb/s

Gigabit Ethernet 10 / 100M / 1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI input/Output HDMI Input and Output Interface, Supports 1080@60Hz, 3D Output

USB Uart Used for Serial Communication with PC or External Devices

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

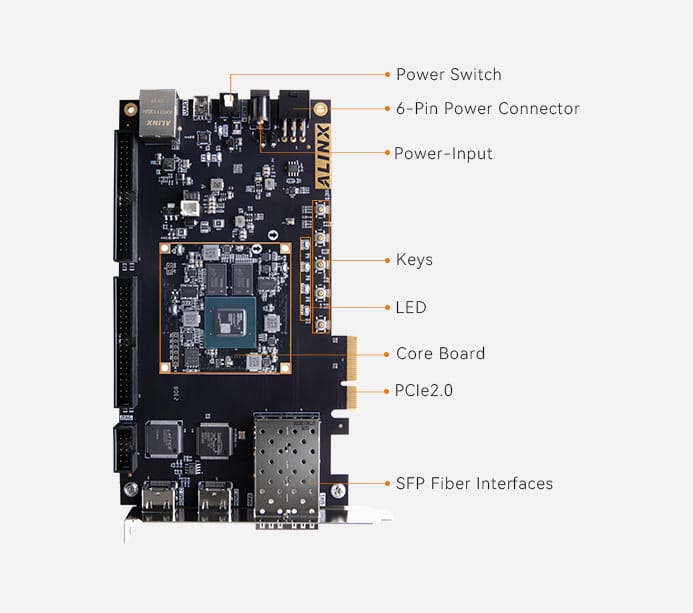

LEDs 5 User LEDs(1 LED in Core Board, 4 LEDs in the Carrier Board)

KEYs 4 User Keys, 1 Reset Key.

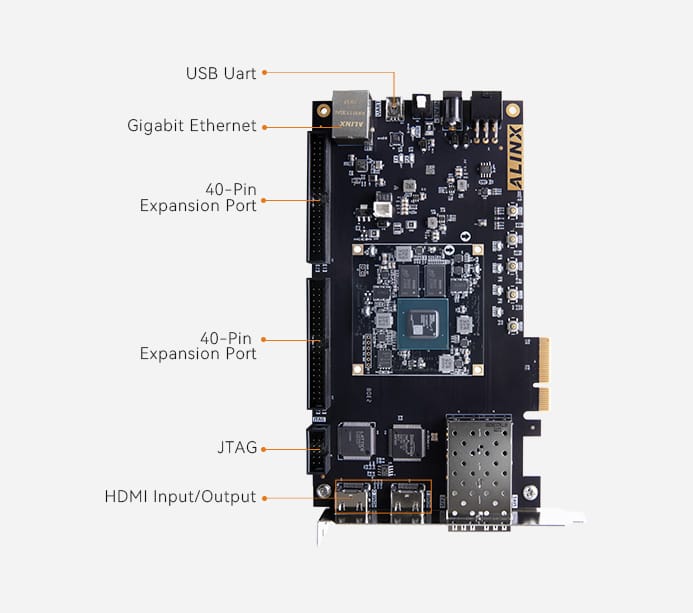

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules )

Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 3A
