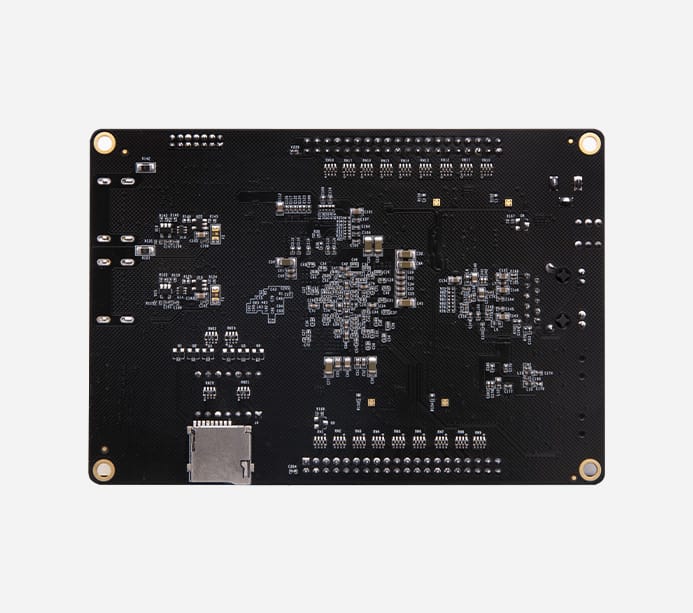

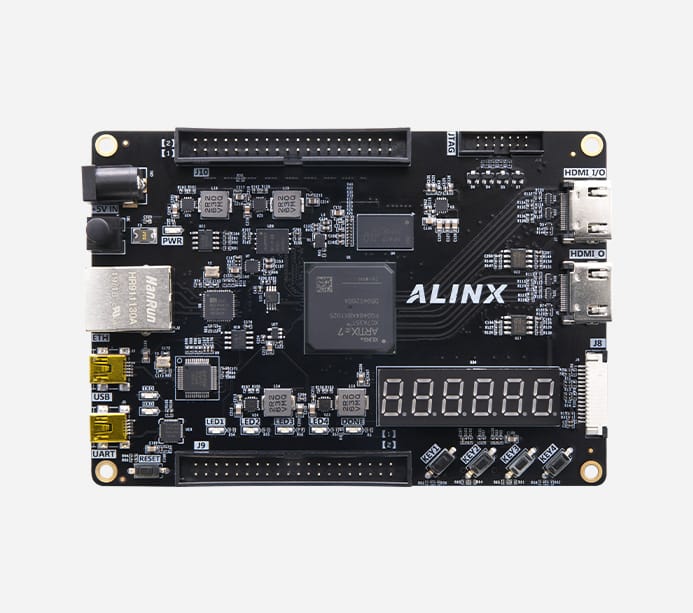

657a9d0bbc4e0f1506a82c2a XILINX Artix-7 FPGA Development Board XC7A35T XC7A35T https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657a9c4faa08acb650466d7e/d1.jpg

Product Parameters

Core Board Parameters

FPGA Chip XC7A35T-2FGG484I

Logic Cells 33,280

Look Up Tables ( LUTs ) 5,200

CLB Flip-Flops 41,600

Block RAM 1,800 kb

DSP Slices 90

Speed Grades -2

Working Temperature Industrial Grade, -40 to 85℃

Interface and Function

DDR3 256MB DDR3, 16bit Bus, Data Rate 800Mbps

QSPI Flash 128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator 50MHz Provide Stable Clock Source for the System

Gigabit Ethernet 10 / 100 / 1000M Ethernet with RJ-45 Interface for Ethernet Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI Input Support up to 720P@60Hz Input

HDMI Output Support up to 1080P@60Hz output

EEPROM EEPROM 24LC04 with IIC Interface On-Board

USB 2.0 The Transmission Speed can reach 45MB/s

USB Uart Used for Serial Communication with PC or External Devices

Temperature Sensor Temperature Sensor chip LM75, used to Detect the Temperature of the Environment around the Board

Digital Tube The 6-digit Digital Tube Dynamically Displays 6 Digits

40-Pin Expansion Ports One 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules ), Expand 60 IOs

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LEDs 4 LEDs

KEYs 4 User KEYs

Power Supply Parameters

Voltage Input +5V DC

Current Input Max. Current 2A

DATA SHEET

TT-XIL-AX7035/AX7035B
in stockINR
Xilinx
1 1
XILINX Artix-7 FPGA Development Board XC7A35T XC7A35T

XILINX Artix-7 FPGA Development Board XC7A35T XC7A35T

Sku: TT-XIL-AX7035/AX7035B

Product Enquiry

Sold By: tenettech
Features
  • Shipping In 12-14 Working Days

Description of product

Product Parameters

Core Board Parameters

FPGA Chip XC7A35T-2FGG484I

Logic Cells 33,280

Look Up Tables ( LUTs ) 5,200

CLB Flip-Flops 41,600

Block RAM 1,800 kb

DSP Slices 90

Speed Grades -2

Working Temperature Industrial Grade, -40 to 85℃

Interface and Function

DDR3 256MB DDR3, 16bit Bus, Data Rate 800Mbps

QSPI Flash 128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator 50MHz Provide Stable Clock Source for the System

Gigabit Ethernet 10 / 100 / 1000M Ethernet with RJ-45 Interface for Ethernet Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI Input Support up to 720P@60Hz Input

HDMI Output Support up to 1080P@60Hz output

EEPROM EEPROM 24LC04 with IIC Interface On-Board

USB 2.0 The Transmission Speed can reach 45MB/s

USB Uart Used for Serial Communication with PC or External Devices

Temperature Sensor Temperature Sensor chip LM75, used to Detect the Temperature of the Environment around the Board

Digital Tube The 6-digit Digital Tube Dynamically Displays 6 Digits

40-Pin Expansion Ports One 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules ), Expand 60 IOs

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LEDs 4 LEDs

KEYs 4 User KEYs

Power Supply Parameters

Voltage Input +5V DC

Current Input Max. Current 2A

DATA SHEET
