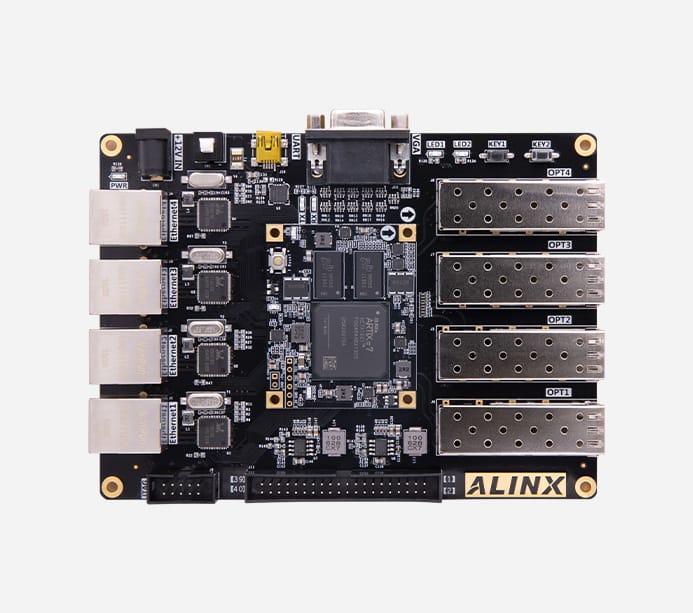

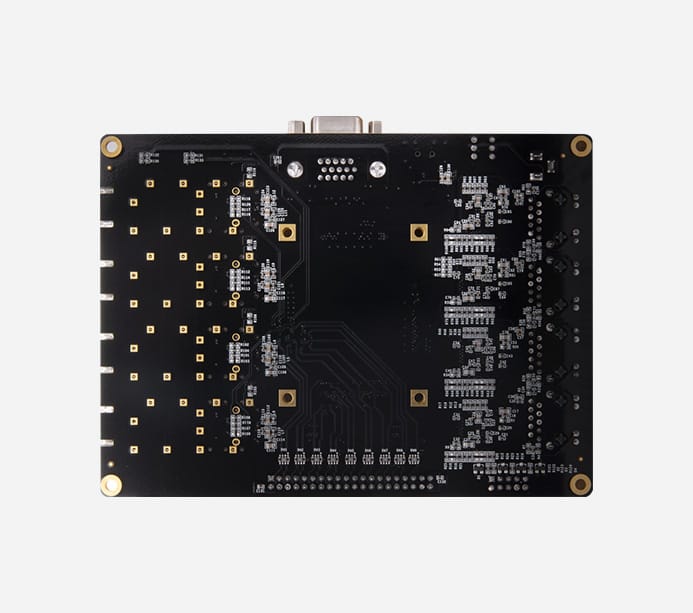

65794cf3056572ee3692238d XILINX Artix-7 FPGA Development Board SFP XC7A100T XC7A100T https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/65794969e30458e10e2c9a8f/d1.jpg

Product Parameters

Core Board Parameters

FPGA Chip XC7A100T-2FGG484I

Logic Cells 101440

Look Up Tables ( LUTs ) 15850

CLB Flip-Flops 126800

Block RAM 4860Kb

DSP 240

QSPI FLASH 128Mbit

DDR3 2 Pics, Totally 1GB

Total IOs 180

Adjustable Voltage IO 100

Logic cells 101440

XADC 12bit 1Mbps AD

Chip Level Industrial Grade

Working Temperature -40°c ~ 85°c

Speed Grades -2

Active Differential Crystal 2

Number of Differential Pairs 48

Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

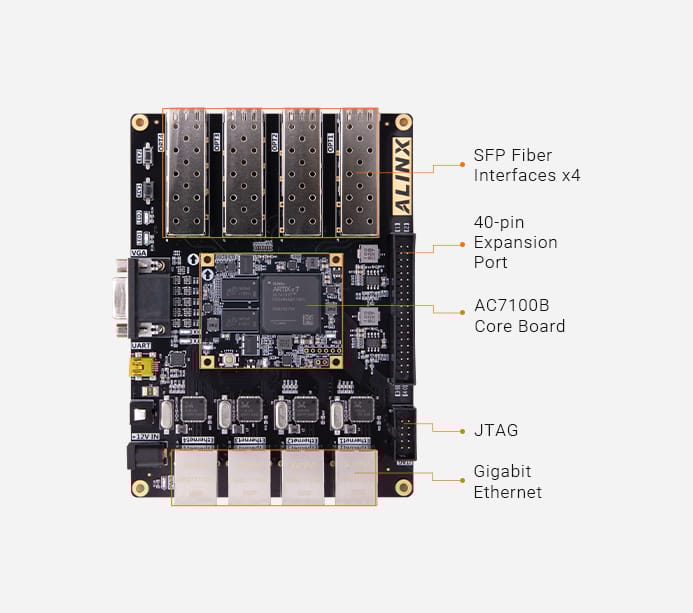

Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

SFP Interface 2-way High-Speed SFP Interface, the Receiving and Transmitting speed of Each Channel is up to 6.6 Gb/s

Gigabit Ethernet 4 10 / 100 / 1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

USB Uart Used for Serial Communication with PC or External Devices

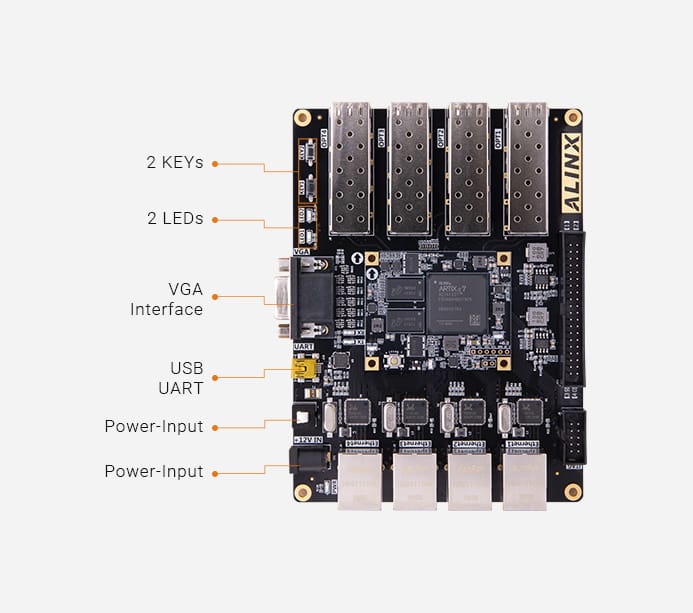

40-Pin Expansion Ports One 40-Pin Expansion Ports ( 0.1 inch Pitch ) Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules ).

VGA 16-bit color VGA Analog Output, RGB565 Format

LEDs 1 LED in Core Board, 2 LEDs in the Carrier Board

KEYs 2 User KEYs

Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 3A

DATA SHEET

TT-XIL-AX7101
in stock INR
Xilinx
1 1

XILINX Artix-7 FPGA Development Board SFP XC7A100T XC7A100T

Sku: TT-XIL-AX7101

Product Enquiry

Sold By: tenettech
Features
  • Call for Pricing

Description of product

Product Parameters

Core Board Parameters

FPGA Chip XC7A100T-2FGG484I

Logic Cells 101440

Look Up Tables ( LUTs ) 15850

CLB Flip-Flops 126800

Block RAM 4860Kb

DSP 240

QSPI FLASH 128Mbit

DDR3 2 Pics, Totally 1GB

Total IOs 180

Adjustable Voltage IO 100

Logic cells 101440

XADC 12bit 1Mbps AD

Chip Level Industrial Grade

Working Temperature -40°c ~ 85°c

Speed Grades -2

Active Differential Crystal 2

Number of Differential Pairs 48

Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

SFP Interface 2-way High-Speed SFP Interface, the Receiving and Transmitting speed of Each Channel is up to 6.6 Gb/s

Gigabit Ethernet 4 10 / 100 / 1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

USB Uart Used for Serial Communication with PC or External Devices

40-Pin Expansion Ports One 40-Pin Expansion Ports ( 0.1 inch Pitch ) Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules ).

VGA 16-bit color VGA Analog Output, RGB565 Format

LEDs 1 LED in Core Board, 2 LEDs in the Carrier Board

KEYs 2 User KEYs

Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 3A

DATA SHEET
