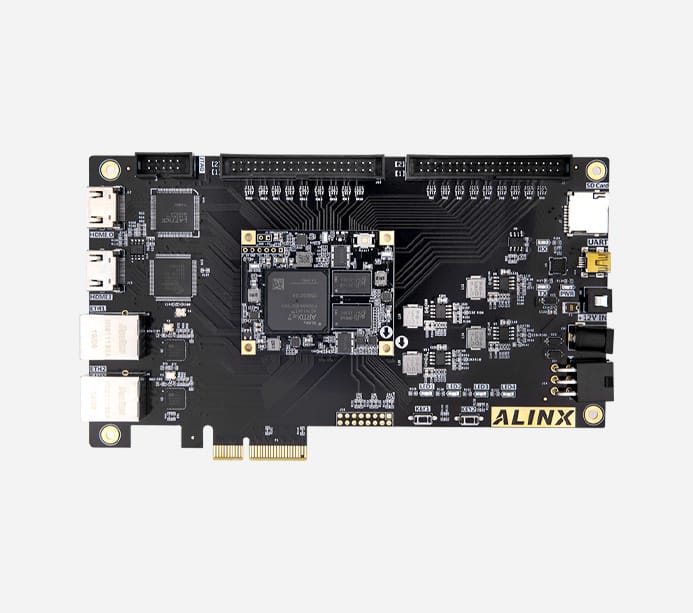

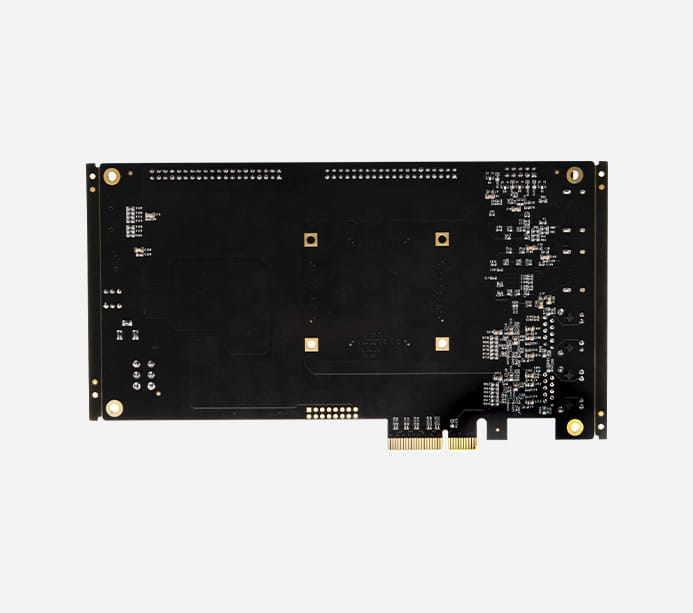

657a99948cc9ee2bf08015fa Xilinx Artix-7 FPGA Development Board PCIE XC7A100T XC7A100T https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657a98a9d69fa32b47755d2c/d1.jpg

Product Parameters

Core Board Parameters

FPGA Chip XC7A100T-2FGG484I

Logic Cells 101440

Look Up Tables (LUTs) 15850

CLB Flip-Flops 126800

Block RAM 4860Kb

DSP 240

QSPI FLASH 128Mb

DDR3 2 Pics, Totally 1GB

Total IOs 180

Adjustable Voltage IO 100

HR IO 180

XADC 12bit, 1Mbps AD

Chip Level Industrial Grade

Working Temperature -40°c ~ 85°c

Speed Grades -2

Active Differential Crystal 2

Number of Differential Pairs 48

Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

PCIe x4 Interface Provides a Standard PCIe 2.0 x4 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

Gigabit Ethernet Two 10 / 100M / 1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI Output Support 1080P@60Hz, 3D Output

HDMI Input Support 1080P@60Hz Input, Data input in Different Formats

USB Uart Used for Serial Communication with PC or External Devices

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LED 5 User LEDs( 1 LED in Core Board, 4 LEDs in the Carrier Board )

KEYs 4 User Keys

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).

Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 3A

DATA SHEET

TT-XIL-AX7103/AX7103B
in stock INR
Xilinx
1 1

Xilinx Artix-7 FPGA Development Board PCIE XC7A100T XC7A100T

Sku: TT-XIL-AX7103/AX7103B

Product Enquiry

Sold By: tenettech
Features
  • Call for Pricing

Description of product

Product Parameters

Core Board Parameters

FPGA Chip XC7A100T-2FGG484I

Logic Cells 101440

Look Up Tables (LUTs) 15850

CLB Flip-Flops 126800

Block RAM 4860Kb

DSP 240

QSPI FLASH 128Mb

DDR3 2 Pics, Totally 1GB

Total IOs 180

Adjustable Voltage IO 100

HR IO 180

XADC 12bit, 1Mbps AD

Chip Level Industrial Grade

Working Temperature -40°c ~ 85°c

Speed Grades -2

Active Differential Crystal 2

Number of Differential Pairs 48

Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash 128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator 200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver 4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

PCIe x4 Interface Provides a Standard PCIe 2.0 x4 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

Gigabit Ethernet Two 10 / 100M / 1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI Output Support 1080P@60Hz, 3D Output

HDMI Input Support 1080P@60Hz Input, Data input in Different Formats

USB Uart Used for Serial Communication with PC or External Devices

EEPROM EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LED 5 User LEDs( 1 LED in Core Board, 4 LEDs in the Carrier Board )

KEYs 4 User Keys

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).

Power Supply Parameters

Voltage Input +12V DC

Current Input Max. Current 3A

DATA SHEET
