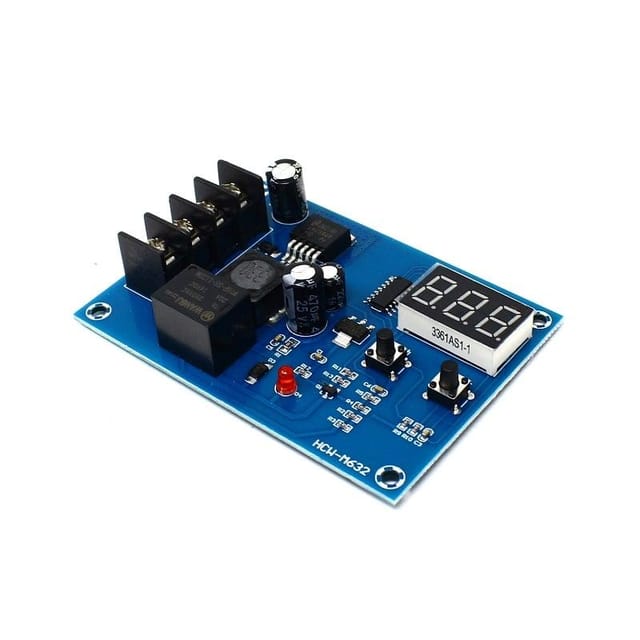

XH-M603 HW-632 Charging Control Module is a 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display. It is used in variety of applications.

Application Fields: 12-24V storage battery  . It is applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery

Using method:

1. Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value.

2. Set Stop Voltage: in normal display voltage state, press the button will display stoping charge voltage;long-press the button for 3s the digital tube will flash; you can start or stop button to set stoping charge voltage value.

3. Factory Reset: in power-on state press the start/stop button at the same time, a digital tube will display 888; that represents factory reset settings.

Note: This Product is available in two different variant(XH-M603 and Hw-632,HCW-632) with same working we will ship it randomly.

Features:

1.  Automatic control circuit connection
2.  Automatic charging and power off
3.  Real-time voltage monitor
4.  Autosave setting
5.  ST core chip
6.  LM2596 switch voltage regulator

Package Includes:

1 x XH-M603 HW-632 Charging Control Module With LED Display
