XDS560V2 SYSTEM TRACE EMULATOR - BH-XDS-560V2

Description of product

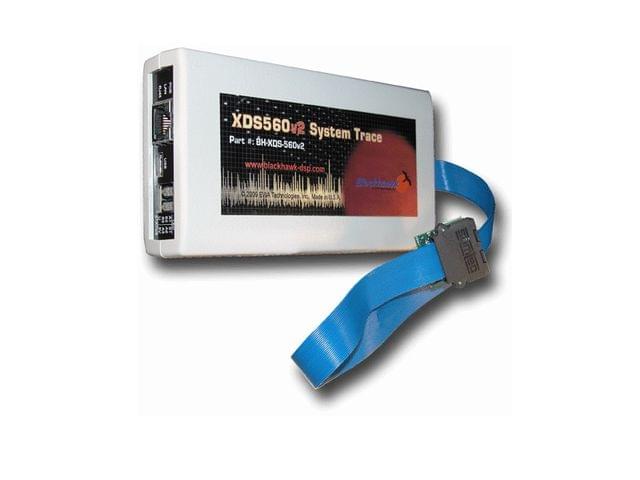

The Blackhawk XDS560v2 System Trace Emulator (BH560v2) is based on the new XDS560v2 system trace reference design (XDS560v2) from Texas Instruments. The XDS560v2 design is the next-generation of the high-performance XDS560-class technology first made available by Blackhawk with the USB560/LAN560 and XDS560 Trace.

The XDS560v2 design includes both high-speed USB 2.0 and 10/100Mbit Ethernet host interfaces, multi-color state and activity LEDs and a flexible, ribbon-ized coax JTAG cable. Along with traditional JTAG (IEEE 1149.1) the XDS560v2 adds support for IEEE 1149.7 (previously known as cJTAG) and system trace (STM), an interface on the TI heterogeneous multi-core (ARM + DSP) devices. If you are familiar with the Blackhawk USB560 or LAN560 products, you will already be familiar with this new emulator design.

As with our LAN560 product, the Ethernet connection of the BH560v2 allows developers share access to target boards without the need of another computer. Migrating from a LAN560 to the Blackhawk XDS560v2 is easy.

Download Datasheet
