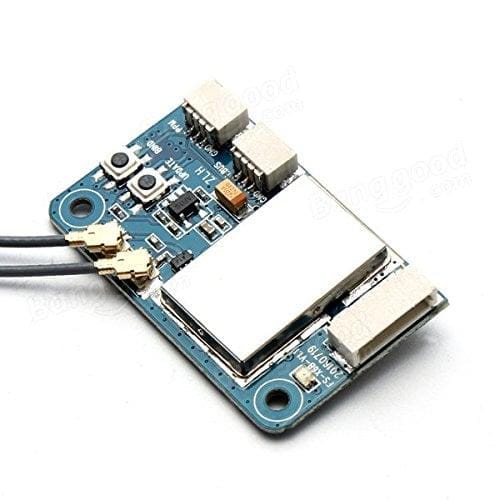

The X6B 2.4G 6CH i-BUS PPM PWM Receiver for AFHDS is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques.

It’s compact, easy to install, and boasts a rich easy to use interface. The FS-X6B support 6 channel PWM output, standard PPM output, and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.

This Receiver is Compatible with FS-i10, FS-i8, FS-i6, FS-i6s, FS-i6x, FS-i4, FS-i4x, etc. FS series RC transmitter. The voltage detection interface can be used to detect the external power supply voltage and can be connected to the 1S-4S power supply, the input range of 0-18V.

Its 2.4G system for AFHDS double omnidirectional antenna prevents signal interference with superior noise reduction techniques. Also, X6B supports 3 kinds of signal output,6 channel PWM output,8 channel PPM output, and 18 channel i-BUS output.

Caution:

Do not connect the receiver with excessive current.

Features :

1. Model Type: Multi-Rotor
2. No more than 20 dBm RF Power
3. AFHDS 2A- 4GHz protocol
4. Low voltage alarm
5.  PPM/PWM/i-BUS DSC port
6. Power input: 4.0-8.4VOn-line Update
7. Compatible Transmitter: All AFHDS 2A Transmitter, for example, FS-i10 FS-i6, FS-i6S, FS-i6X, FS-i4, FS-i4X.

Package includes:

1 x Flysky X6B 2.4G 6CH i-BUS PPM PWM Receiver with Dual Antenna
3 x Signal Cable for Voltage Sensor, PPM, and i-Bus port
1 x Signal Cable for PWM Port
