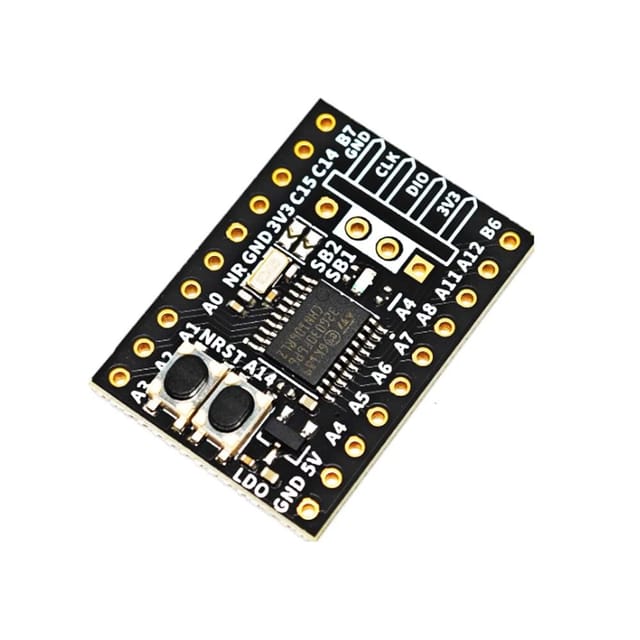

The STM32G031F6P6 Development Board by WeAct Studio is a popular choice to learn how to program the STM32 Microcontrollers from ST Microelectronics. The board consists of the STM32G031F6P6 microcontroller which is a ARM Cortex M0+ 32-bit processor. The STM32G031F6P6 provides a compact yet Tenet Technetronicsst platform for your designs which holds. The MCU has inbuilt 5V to 3.3V voltage regulator to power the MCU. Unlike Arduino boards, the STM32 Development board works on 3.3V.

The development board contains two onboard LEDs, one is used for power indication and the second LED is connected to the GPIO pin PA4 and an User button connected to the pin PA14.

The development board can be easily programmed using the STM32CubeIDE and other development environments offered by ST Microelectronics. You can also use Keil, IAR workbench, Atollic TrueStudio, MicroC Pro ARM, Crossworks ARM, Ride 7, PlatformIO+STM32 etc. to program the board. The board can be programmed directly from the CubeIDE using the ST-Link. The hex file of a program can also be uploaded by using JTAG/ serial wire debugging (SWD).

The device offers 1x ADC with programmable resolution upto 12-bit, 5x 16-bit timers, 1x 32-bit Timer and 2x Low Power Timers as well as standard and advanced communication interfaces: 2x I2Cs and 2x SPIs, 2x USARTs, 1x LPUART and 1x I2S.

Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. 100% Brand new and high-quality STM32 Board
2. 64MHz MAX clock frequency
3. 32K flash memory, 8K SRAM
4. 32.768KHz Low speed crystal on Board
5. 15 general-purpose I/O (GPIO) pins
6. Working Temperature: -40°C ~ +85°C
7. Low Power, Sleep, stop and Standby modes
8. Interfaces: 3x UART, 2x SPI, 2x I2C, 1x I2S

Package Includes:

1 x WeAct Studio STM32G031F6P6 Core Demo Board
