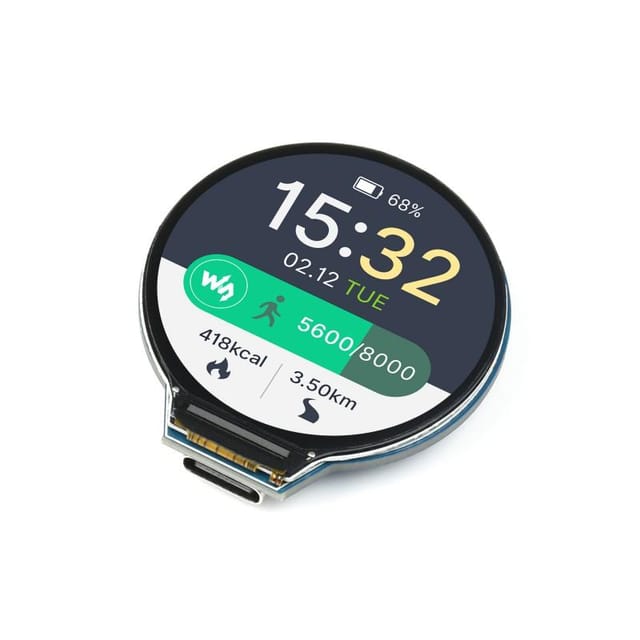

Waveshare RP2040 MCU Board With 1.28inch Round LCD accelerometer and gyroscope Sensor. RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.

Compatible Models:

Features:

1. RP2040 MCU chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 2MB of onboard Flash memory
4. Type-C connector, keeps it up to date, easier to use
5. Onboard 1.28-inch 240 x 240 resolution, 65K RGB IPS LCD display for clear color pictures
6. Lithium battery recharge/discharge header, suitable for mobile devices

Specifications:

1. Controller: GC9A01A
2. Resolution: 240 (H) RGB x 240(V)
3. Communication interface: SPI
4. Display Size: Φ32.4mm
5. Display Panel: IPS
6. Pixel Size: 0.135 (H) x 0.135 (V) mm
7. Sensor: QMI8658C
8. Accelerometer Resolution: 16 bits
9. Measurement Range (optional): ±2, ±4, ±8, ±16g
10. Gyroscope Resolution: 16 bits
11. Measurement Range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec

Useful Link:

Waveshare RP2040 MCU Board, With 1.28inch Round LCD, accelerometer and gyroscope Sensor

Package Includes:

1 x RP2040 MCU Board, With 1.28inch Round LCD,
