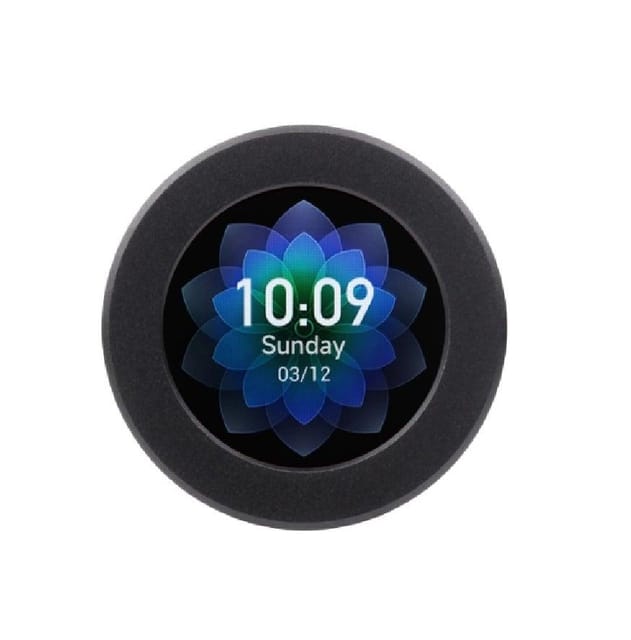

ESP32-S3-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Features:

1. Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna
3. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
4. Type-C connector, keeps it up to date, easier to use
5. Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
6. Adopts CNC metal case with Acrylic dull-polish bottom plate
7. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
8. Onboard 3.7V lithium battery recharge/discharge header and GPIO headers
9. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
10. Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions

Specifications:

1. Processor: Xtensa® 32-bit LX7 dual-core
2. LCD display: 1.28inch
3. resolution: 240×240
4. Flash memory: 16MB
5. Connector: Type-C
6. SRAM: 512KB
7. ROM: 384KB
8. PSRAM: 2MB

Package Includes:

1 x ESP32-S3-LCD-1.28-B

1 x Screwdriver
