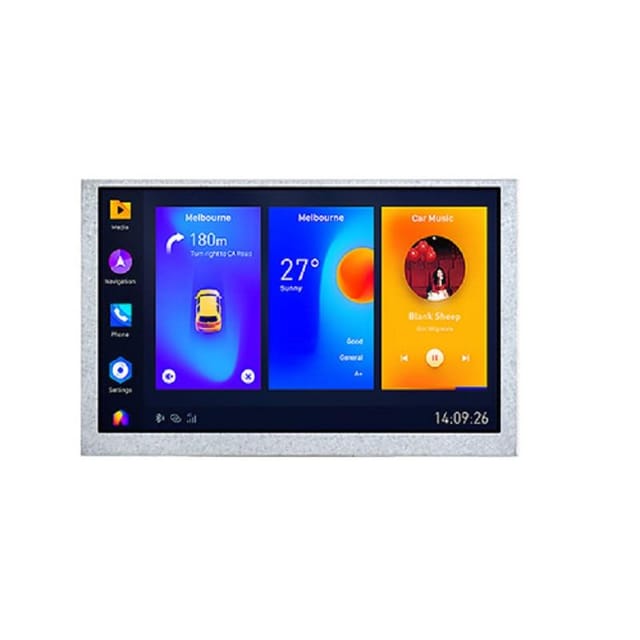

This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

Features:

1. Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
3. Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
4. Onboard 5inch LCD display, options for 1024×600 resolution, 65K color
5. Onboard voltage regulator, supports 7~36V wide range power supply
6. Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss
7. Onboard CAN, RS485, I2C interface, TF card slot, MX1.25 2P battery header, and digital isolated IO interfaces, etc.
8. Supports passive and active digital input, with bi-directional optocoupler isolation
9. Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
10. Onboard LED indicators for indicating the power and battery recharging status
11. Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

Package Includes:

1 x Waveshare ESP32-S3 5B Display Development Board
