VJ0603Y104KXACW1BC-VISHAY-SMD Multilayer Ceramic Capacitor, 0.1 ?F, 50 V, 0603 [1608 Metric], ? 10%, X7R, VJ. The Vishay VJ series are high capacitance multilayer ceramic chip capacitors with X7R dielectric material for commodity and high frequency applications. This safety certified surface mount (SMD) capacitors are reliable replacement for leaded capacitors. X7R dielectric material exhibits change in capacitance with respect to case. MLCC dielectric material is incorporated with metal electrodes are subjected to high temperature. Conductive barriers are integrated on either ends of chip for complete connection.

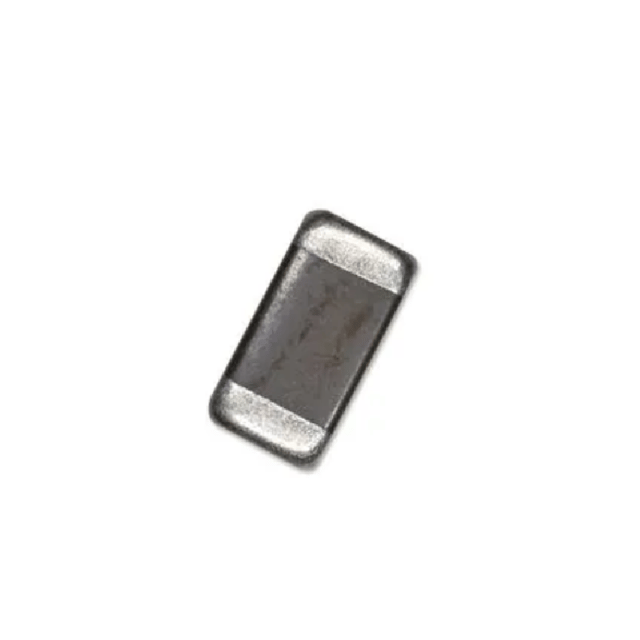

Note: Images for reference only. For more technical information, please refer to datasheet in Attachments.

Specifications:

Capacitance:: 0.1?F
Voltage(DC):: 50V
Capacitor Case / Package:: 0603 [1608 Metric]
Capacitance Tolerance:: 10%
Dielectric Characteristic:: X7R
Product Length:: 1.6mm
Product Width:: 0.85mm
Capacitor Terminals:: Wraparound
Operating Temperature Min:: -55?C
Operating Temperature Max:: 125?C
Qualification:: –
MSL:: MSL 1 – Unlimited

Package Includes:

1 x VJ0603Y104KXACW1BC-VISHAY-SMD Multilayer Ceramic Capacitor, 0.1 ?F, 50 V, 0603 [1608 Metric], ? 10%, X7R, VJ
