Description of product

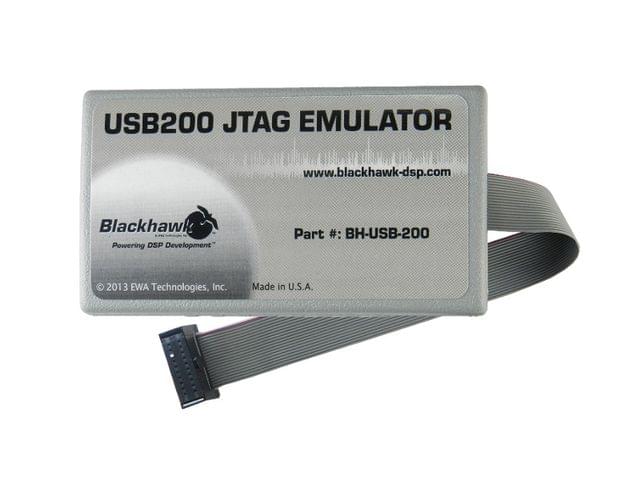

The Blackhawk USB200 Emulator (USB200) is a TI XDS200-class emulator that is small, lightweight and portable. The USB200 product is compatible with the TI XDS2xx reference design.

The USB200 offers an excellent balance of performance and price placing it in between the super low cost XDS100 and high performance XDS560 class emulators. The USB200 is compatible with Code Composer Studio IDE (CCS) v5.2.0 with the latest TI emulation update applied.

The controller supports the compact TI 20-pin JTAG header and voltage ranges from 1.5 to 4.1v. The USB host port permits communications with the host PC and two LEDs give operational status.

The USB200 supports the TI UniFlash™ programming utility and CCS DSS Java Scripting.

Blackhawk also has available an optional Isolation Adapter which protects from ground loop voltage, harsh environments and new, untested designs. Supports 3.3-5.0v targets with TI 14-pin and cTI 20-pin connections.
