UP Core 2GB + 16 GB eMMC memory
UP Core 2GB + 16 GB eMMC memory

Description of product

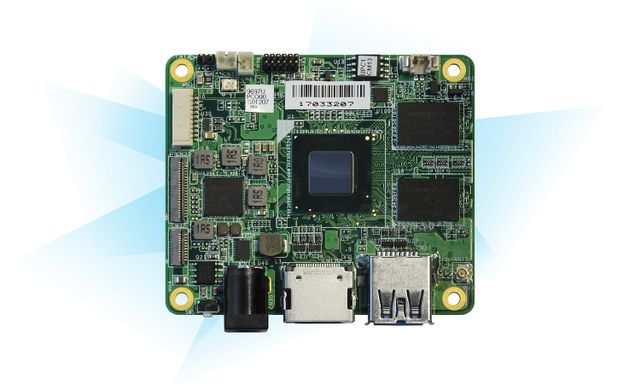

UP Core, the smallest quad-core x86 single board computer in the world, aims to bridge the gap between single board computers and computer-on-modules. It is half the size of your smartphone and it can be expanded or stacked to extend many more functionalities. At a limited size of 56.5x 66mm, be prepared to experience the unlimited possibilities of UP Core.

Box contents:

- UP Core
- Passive heatsink
- RTC battery


UP board version UP Core
SoC Intel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz
Graphics Intel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8
System memory 2GB DDR3L
Storage capacity 16GB eMMC
USB2.0 port (pin header) x2
USB 3.0 port x1 ( OTG)
Video output HDMI
Camera Interface 1xMIPI-CSI (2 lane) + 1xMIPI-CSI (4 lane)
Power input 5V DC-in @ 3A 5.5/2.1mm jack
RTC YES
PXE YES
WOL YES
Operating humidity 10%~80%RH non-condensing
Operating tempature 32-140°F / 0~60°C
Expansion 100 pin
Compatible operating system Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
Certificate CE/FCC Class A, RoHS complaint Microsoft Azure certified
Dimension 56.5x66mm
Net Weight (without package) 40 gram
CEC No
HS code 8473300000
Country of Origin Taiwan
