UP unleashes the power of the Intel x5-Z8350 QuadCore 1.44Ghz (1.92GHz) 64 bit 2W SDP CPU.
The 40 Pin I/O connector, the USB 3.0 OTG, the Gigabit Ethernet, the HDMI and more other features make it a perfect solution for different domains and products like Robotics, Drone, Machine Vision, Smart Home, Education, Digital Signage, Intelligent Cars, Internet Of Things. The compatibility with Linux, Android, and all the Windows 10 distributions give you great flexibility, scalability and quick time to market.

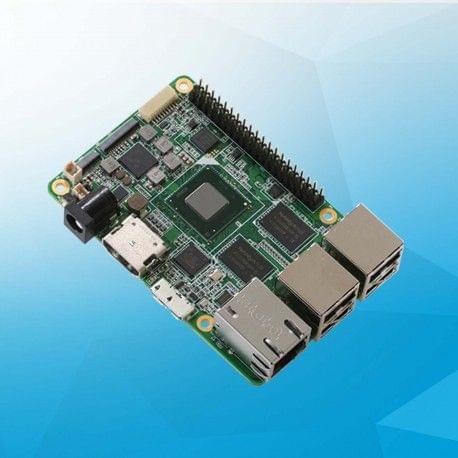

Offered is one UP board,featuring with X5-Z8350 CPU with 16GB eMMC & 2GB RAM on board.
- UP board
- Passive heatsink
- RTC battery
Note: This product comes without operating system
|UP board version||UP|
|SoC||Intel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz|
|Graphics||Intel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8|
|System memory||2GB DDR3L|
|Storage capacity||16GB eMMC|
|USB2.0 external connector||x4|
|USB2.0 port (pin header)||x2|
|USB 3.0 port||x1 ( OTG)|
|Ethernet||1x Gb Ethernet (full speed) RJ-45|
|Display interface||DSI / eDP|
|Power input||5V DC-in @ 3A 5.5/2.1mm jack|
|Operating humidity||10%～80%RH non-condensing|
|Operating tempature||32-140°F / 0~60°C|
|Expansion||40 pin General Purpose bus, supported by Altera Max V. ADC 8-bit@188ksos|
|Compatible operating system||Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android|
|Certificate||CE/FCC Class A, RoHS complaint Microsoft Azure certified|
|Net Weight (without package)||80 gram (w/ passive heatsink)|
|package dimension||15*9*5 cm|
|Gross weight||140 gram|
|Country of Origin||Taiwan|
