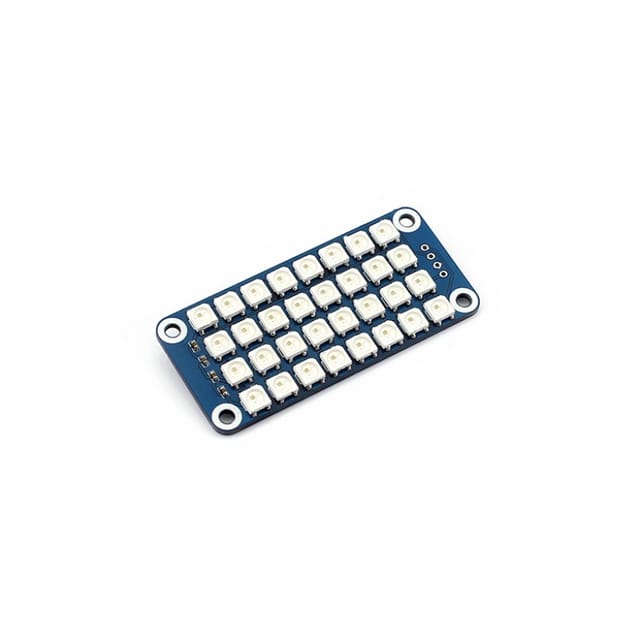

5b1e3b2f71c89e6cbf8947cc True color RGB LED HAT for Raspberry Pi, colorful display https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1e3b2f71c89e6cbf8947cc/images/5b1e3b2f71c89e6cbf8947cd/5b1e35b46787d20ab158b52a/webp/5b1e35b46787d20ab158b52a.jpg

Overview

This RGB LED HAT can be easily attached on top of the Raspberry Pi to display colorful effect, and controlled by only one signal pin.

Features

  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Onboard 4 × 8 RGB LED (WS2812B)
  • Control pin is configurable via jumpers (0Ω resistor)
  • Break out control pins, easy for working with other MCUs
  • Comes with development resources and manual (examples in Python and Web control)

Specifications

  • Operating voltage: 5V
  • Brightness: adjustable 256 levels
  • Color depth: 24-bit true color (8-bit for R/G/B respectively, totally 256x256x256=16777216 colors)
  • Data rate: 800Kbps(typ)
  • Dimension: 65mm × 30.2mm
  • Mounting hole size: 3.0mm

How to Use

In the case of working with a MCU:

  • 5V ↔ 5V power
  • GND ↔ GND
  • DIN ↔ Signal input
  • DOUT ↔ Signal output (optional)

Demo

RGB LED HAT demo

Dimensions

RGB LED HAT dimensions
TT-WS-12725
in stock INR 1231
