Description

TMS320F28016 is known to be the world's lowest cost 32-bit Real Time Microcontroller (DSP) with a build in CAN and it costs only US $3.60 / 1000 pcs quantity. This is a very good bargain for a 32-bit core running at 60 Mhz, delivering 60 MMACS, 32KB Flash, 12 KB RAM, 8 channel PWM 6 of them with enhanced resolution of 150 ps(!), 2 x 8 channels 3.75 MPSP 12-bit ADCs, CAN, RS232, SPI, I2C.

Features

• MCU: TMS320F28016 32KB Flash, 12 KB RAM, 3.75 MPSP 2 x 8 channel ADCs, 8 PWM, CAN, SPI, RS232, I2C
• JTAG connector
• USB-to-RS232 converter allow easy to power board and to connect to notebooks and decent computers without RS232 port
• CAN driver and connector
• UEXT connector with SPI, RS232, I2C for connection to other Olimex modules as MOD-NRF24Lx, MOD-MP3, etc.
• MOTOR control connector (for add on modules with ADC, PWM, Interrupt signals available)
• User button
• Trimmer potentiometer connected to Analog input
• Power supply LED
• User status LED
• RST button
• External power supply jack for AC or DC power supply
• Voltage regulator + power supply filtering capacitor
• Extension headers for each uC pin

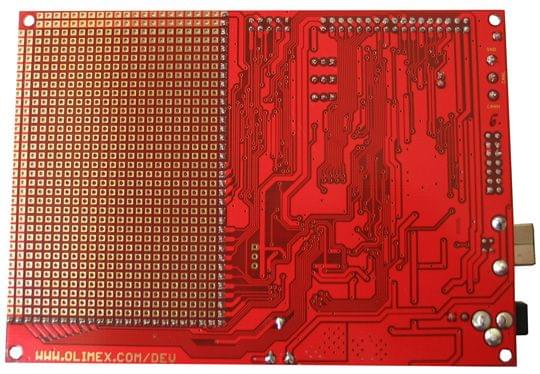

• Prototype area with 0.1" step, Vcc + GND bus
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 100x80 mm (3.9x3.15")
