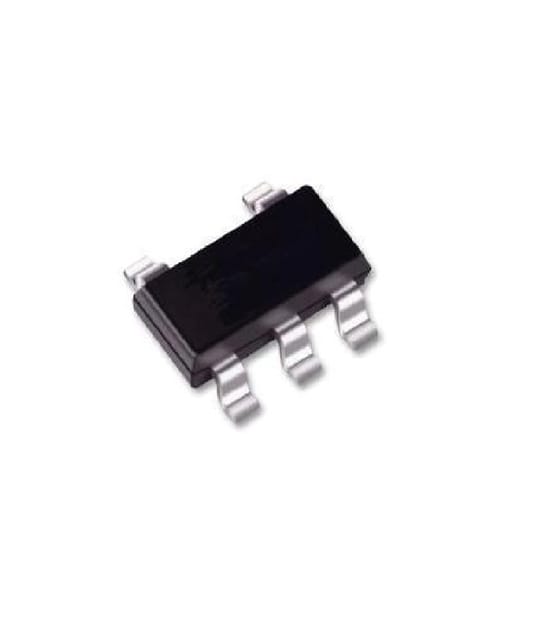

6731f4ae9a4d4a00243f1b65 SN74LVC1G04DBVR, TEXAS INSTRUMENTS, Logic IC, Inverter, Single, 1 Inputs, 5 Pins, SOT-23, 74LVC1G04 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6731f4b09a4d4a00243f1b74/smd-5-pin.png
The 74LVC1G04 SN74LVC1G04DBVR is a single-inverter gate IC designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = A. The CMOS device has a high output drive while maintaining low static power dissipation over a broad VCC operating range.

Applications

Signal Processing, Portable Devices, Consumer Electronics, Computers & Computer Peripherals, Audio, Power Management, Wireless, Communications & Networking

Features:

  1. Supports 5V VCC Operation
  2. Input Accepts Voltage up to 5.5V Allowing Down Translation to VCC
  3. 3.3ns at 3.3V Maximum Propagation Delay Time
  4. Low-power Consumption, 10µA Maximum ICC
  5. ±24mA Output Drive at 3.3V
  6. Ioff Supports Live-insertion, Partial-power-down Mode and Back-drive Protection
  7. Latch-up Performance Exceeds 100mA Per JESD 78, Class II
  8. Green Product, No Sb/Br

Package Includes:

1 x SN74LVC1G04DBVR, TEXAS INSTRUMENTS, Logic IC,

 TT-RB-1801658
in stock INR 28
1 1

SN74LVC1G04DBVR, TEXAS INSTRUMENTS, Logic IC, Inverter, Single, 1 Inputs, 5 Pins, SOT-23, 74LVC1G04

Sku: TT-RB-1801658
Be the first to review this product
₹28
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The 74LVC1G04 SN74LVC1G04DBVR is a single-inverter gate IC designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = A. The CMOS device has a high output drive while maintaining low static power dissipation over a broad VCC operating range.

Applications

Signal Processing, Portable Devices, Consumer Electronics, Computers & Computer Peripherals, Audio, Power Management, Wireless, Communications & Networking

Features:

  1. Supports 5V VCC Operation
  2. Input Accepts Voltage up to 5.5V Allowing Down Translation to VCC
  3. 3.3ns at 3.3V Maximum Propagation Delay Time
  4. Low-power Consumption, 10µA Maximum ICC
  5. ±24mA Output Drive at 3.3V
  6. Ioff Supports Live-insertion, Partial-power-down Mode and Back-drive Protection
  7. Latch-up Performance Exceeds 100mA Per JESD 78, Class II
  8. Green Product, No Sb/Br

Package Includes:

1 x SN74LVC1G04DBVR, TEXAS INSTRUMENTS, Logic IC,
