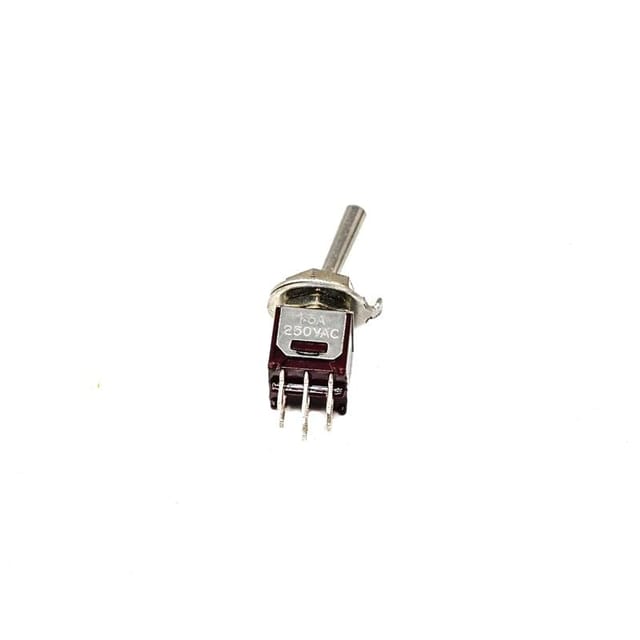

SMTS-203-2A1-Sub Miniature Toggle Switch-6 Pin (ON-OFF-ON). The SMTS sub-miniature toggle switches are offered in both SPDT and DPDT. These mini toggle switch come with a variety of switching functions and bushing options. Eight different termination options are available.

Applications include telecommunications, instrumentation, networking, and medical equipment devices.

Specifications:

• Housing: PA66
• Lever: Brass with Nickel plated
• Terminal: Brass with sliver plated
• Torque: Max. 5kg·cm (70 ounce·inch)
• Rating: 3A 125VAC/1.5A 250VAC
• Contact Resistance: 20mΩ max
• Electrical Life: ≥ 10,000
• Cycles Mechanical Life: ≥ 100,000 Cycles
• Dielectric strength: 1000VAC 1 minute
• Operating Temperature: -25℃~+85℃
• Insulation Resistance: 1000mΩ min (500VDC)
• OEM or ODM: Available

Package Includes:

1 x SMTS-203-2A1-Sub Miniature Toggle Switch-6 Pin (ON-OFF-ON)
