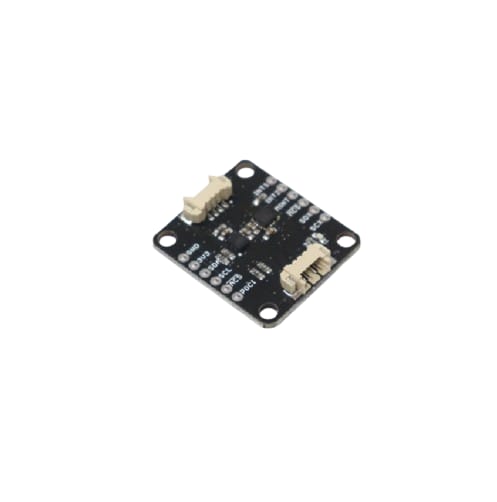

672affae293c2d002443805b SmartElex 9DoF IMU Breakout ISM330DHCX, MMC5983MA https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/672affaf293c2d002443805d/16-removebg-preview.png
Click here to see why SmartElex is different!

The? 9DoF IMU Breakout combines the high-performance ISM330DHCX 3D digital accelerometer and gyroscope from STMicroelectronics with the highly sensitive MMC5983MA triple-axis magnetometer by MEMSIC to give you an ultra-powerful and easy-to-use Molex PicoBlade enabled breakout board. Utilizing our handy Molex PicoBlade system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1″-spaced pins in case you prefer to use a breadboard.

With a full-scale acceleration range of 2/4/8/16g and a wide angular rate range of 125/250/500/1000/2000/4000dps, as well as an unmatched set of embedded features (Machine Learning Core, programmable FSM, FIFO, sensor hub, event decoding and interrupts), the ISM330DHCX delivers high performance at very low power. Add the MMC5983MA, which can measure magnetic fields within the full-scale range of  8 Gauss (G), with 0.25mG/0.0625mG per LSB resolution at 16bits/18bits operation mode and 0.4 mg total RMS noise level and you have Nine Degrees of Freedom on one little board.

Features:

  1. ISM330DHCX – 3D digital accelerometer and gyroscope
  2. MMC5983MA – Triple-axis magnetometer
  3. I2C & SPI communication interface
  • ISM330DHCX 6DoF IMU
    1. Embedded compensation for high stability over temperature
    2. Auxiliary SPI serial interface for data output of gyroscope and accelerometer (OIS and other stabilization applications)
    3. Six-channel synchronized output
    4. Sensor hub feature to collect data from additional external sensors
    5. Embedded smart FIFO up to 9kB
    6. Programmable Finite State Machine to process data from accelerometer, gyroscope, and external sensors
    7. Machine Learning Core
    8. Smart embedded functions and interrupts: tilt detection, free-fall, wakeup, 6D/4D orientation, click and double-click
    9. Embedded pedometer, step detector, and counter
    10. Embedded temperature sensor
  • MMC5983MA Magnetometer
    1. Fully integrated 3-axis magnetic sensor
    2. Dynamic range and accuracy:
      • ?8G FSR
      • 18bits operation
      • 0.4mG total RMS noise
      • Enables heading accuracy of ±0.5
    3. A max output data rate of 1000Hz
    4. On-chip sensitivity compensation
    5. On-chip temperature sensor
    6. I2C Address:0x30

Package Includes:

1 x SmartElex 9DoF IMU Breakout – ISM330DHCX, MMC5983MA

 TT-RB-1848625
in stock INR 2291
1 1

SmartElex 9DoF IMU Breakout ISM330DHCX, MMC5983MA

Sku: TT-RB-1848625
Be the first to review this product
₹2,291
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

Click here to see why SmartElex is different!

The? 9DoF IMU Breakout combines the high-performance ISM330DHCX 3D digital accelerometer and gyroscope from STMicroelectronics with the highly sensitive MMC5983MA triple-axis magnetometer by MEMSIC to give you an ultra-powerful and easy-to-use Molex PicoBlade enabled breakout board. Utilizing our handy Molex PicoBlade system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1″-spaced pins in case you prefer to use a breadboard.

With a full-scale acceleration range of 2/4/8/16g and a wide angular rate range of 125/250/500/1000/2000/4000dps, as well as an unmatched set of embedded features (Machine Learning Core, programmable FSM, FIFO, sensor hub, event decoding and interrupts), the ISM330DHCX delivers high performance at very low power. Add the MMC5983MA, which can measure magnetic fields within the full-scale range of  8 Gauss (G), with 0.25mG/0.0625mG per LSB resolution at 16bits/18bits operation mode and 0.4 mg total RMS noise level and you have Nine Degrees of Freedom on one little board.

Features:

  1. ISM330DHCX – 3D digital accelerometer and gyroscope
  2. MMC5983MA – Triple-axis magnetometer
  3. I2C & SPI communication interface
  • ISM330DHCX 6DoF IMU
    1. Embedded compensation for high stability over temperature
    2. Auxiliary SPI serial interface for data output of gyroscope and accelerometer (OIS and other stabilization applications)
    3. Six-channel synchronized output
    4. Sensor hub feature to collect data from additional external sensors
    5. Embedded smart FIFO up to 9kB
    6. Programmable Finite State Machine to process data from accelerometer, gyroscope, and external sensors
    7. Machine Learning Core
    8. Smart embedded functions and interrupts: tilt detection, free-fall, wakeup, 6D/4D orientation, click and double-click
    9. Embedded pedometer, step detector, and counter
    10. Embedded temperature sensor
  • MMC5983MA Magnetometer
    1. Fully integrated 3-axis magnetic sensor
    2. Dynamic range and accuracy:
      • ?8G FSR
      • 18bits operation
      • 0.4mG total RMS noise
      • Enables heading accuracy of ±0.5
    3. A max output data rate of 1000Hz
    4. On-chip sensitivity compensation
    5. On-chip temperature sensor
    6. I2C Address:0x30

Package Includes:

1 x SmartElex 9DoF IMU Breakout – ISM330DHCX, MMC5983MA
