Sipeed Longan Nano - RISC-V GD32VF103CBT6 Development Board

Description of product

Descrition

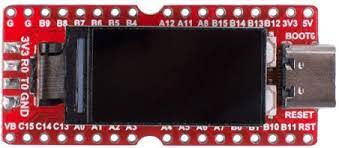

Sipeed Longan Nano is a development board based on GD32VF103CBT6 MCU with RISC-V 32-bit core of GigaDevice. It is convenient for students, engineers and geek enthusiasts to contact the new-generation RISC-V processor. Longan Nano sold by Seeed comes with a 0.96inch 160x80 IPS RGB LCD and an acrylic transparent case.

GD32VF103CBT6 is a Bumblebee core based on Nuclei System Technology. Support RV32IMAC instruction set and ECLIC fast interrupt function. Core power consumption is only 1/3 of that of traditional Cortex-M3.

Longan Nano development board, double-row pin layout design, needle spacing 700 mil, can be inserted directly into breadboard; on-board 8M passive crystal oscillator, 32.768 KHz RTC low-speed crystal oscillator, Mini TF slot, and use Type-C USB interface.

Longan Nano supports multiple download methods: USB DFU download, UART ISP download, JTAG download. In the USB DFU download mode, you only need a USB Type-C cable to download the program to the development board. At the same time, Longan Nano supports the standard JTAG interface, which can be debugged online using the in-store RISC-V debugger or any JTAG-enabled debugger such as J-Link.

Features

  • Chip built-in 128KB Flash, 32KB SRAM
  • 4 x general purpose 16-bit timer, 2 x basic 16-bit timer, 1 x advanced 16-bit timer
  • Watchdog, RTC, Systick
  • 3 x USART, 2 x I2C, 3 x SPI, 2 x I2S, 2 x CAN, 1 x USBFS (OTG)
  • 2 x ADC (10 channel), 2 x DAC
specifications
SPECIFICATION
CPUGD32VF103CBT6 based on RISC-V 32-bit core
Kernel power consumptionOnly 1/3 of the traditional Cortex-M3
Chip built-in128KB Flash, 32KB SRAM
Peripheral● 4 x general purpose 16-bit timer, 2 x basic 16-bit timer, 1 x advanced 16-bit timer
● Watchdog, RTC, Systick
● 3x USART, 2 x I2C, 3 x SPI, 2 x I2S, 2 x CAN, 1 x USBFS (OTG),
● 2 x ADC (10 channel), 2 x DAC
SOFTWARE
IDEPlatformIO IDE, Support debugging, Arduino
Compile Toolchain & DebuggerGCC, OpenOCD
Operating systemRT-Thread、LiteOS
HARDWARE

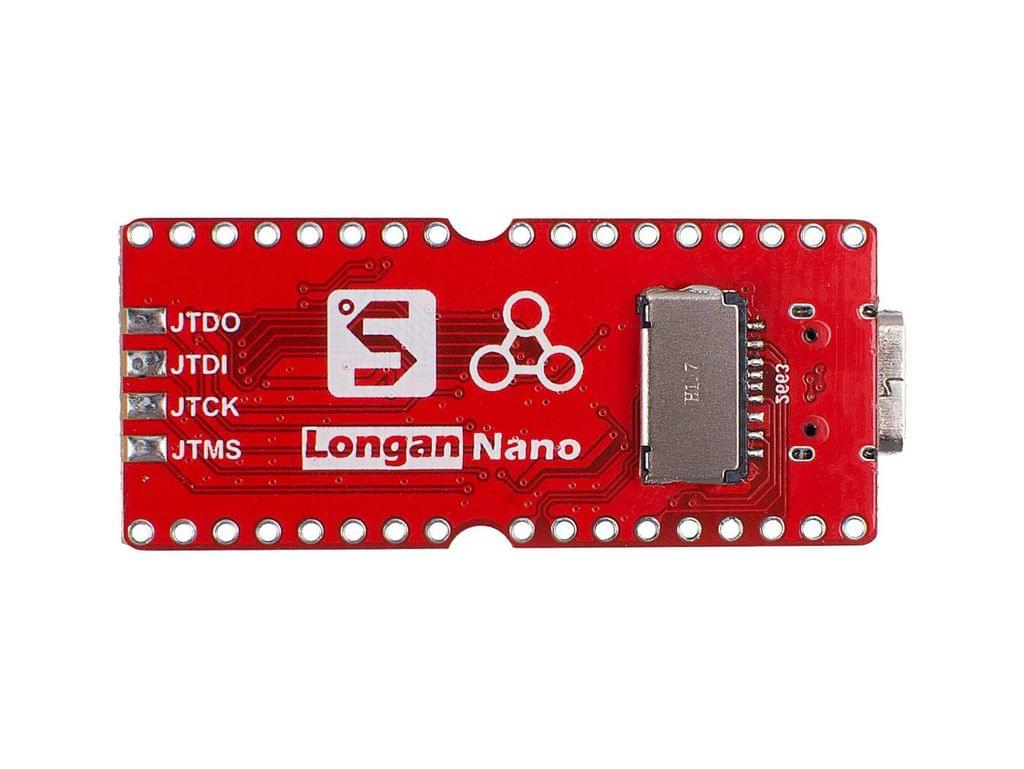

Storage expansionShort body TF card slot
Display expansion8pin 0.5mm FPC Block Expansion 160x80 RGB IPS LCD (SPI Interface)
Debug interface2x4 pin leads to JTAG debug interface
ConnectorDouble row 2.54 pitch pin
Crystal8MHz Passive High Speed Crystal +32.768KHz Low Speed RTC Crystal
