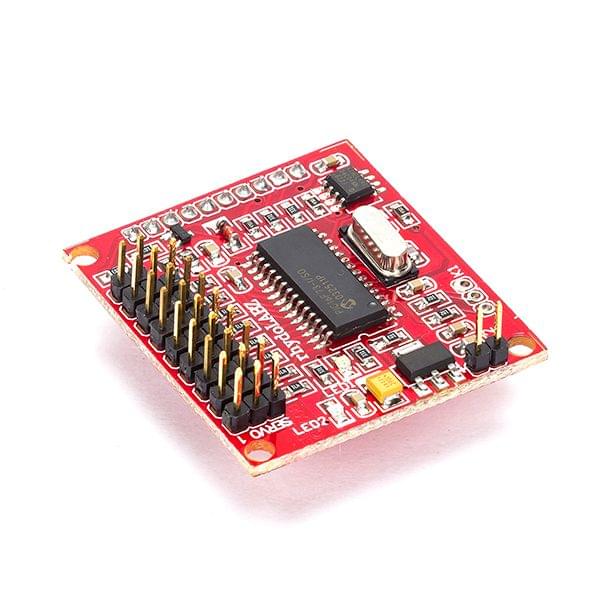

5d5d267fdac655114a4e7f6a Serial Servo Controller ( Usart & SPI) with ADC https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d5d267fdac655114a4e7f6a/images/5d5d267fdac655114a4e7f6b/5d5d264e7ebfd210c7b7c169/5d5d264e7ebfd210c7b7c169.jpg
Description
The "Serial Servo Controller (USART & SPI) with ADC" from Rhydolabz is a very compact solution for controlling up to eight RC servos from a PC or microcontroller. Each servo speed and range can be controlled independently. This servo controller supports USART and SPI communications. The user could control the servomotors by sending the desired command  from a SPI  or USART supporting device. Servo Controller supports two communication protocols  Mini SSCII and RHYDO-SSC protocol. The built in 2 ADC Port can be used for measuring any analog voltage (ie. 2 Sensor values) and the other ADC channel is permanently connected to measure Servo Voltage. With appropriate command from host controller the module will do ADC conversion for the selected channel and send out the result via USART/SPI. This feature is extremely useful for microcontroller without Onchip ADC ( like AT89S52), and to detect the battery low condition. Up to 128 Servos can be controlled by connecting 16 Module in Parallel.

Features
  • Compact High Quality Two layer PTH PCB
  • Professional EMI/RFI Complaint PCB Layout Design for Noise Reduction
  • Support Mini SSII and RHYDO-SSC Protocol
  • USART and SPI interface with host Controller
  • 3 Channel ADC measurement using command
  • Servo volage measurement using command
  • Onboard EEPROM to save Configuration Parameters
  • RS232 to TTL conversion for PC based controlling
  • On Board Status LED Indicator
  • On Board TTL / RS232 / SPI connector
  • Can set Neutral Point for each servo
  • On Board EEPROM
  • Mini SSII Mode in default and ready to use.
Specifications
  • Number of servo ports: 8 Nos
  • Pulse Width Range: 0.25 to 2.75ms
  • Resolution: (~0.05 degree)
  • Supply voltage: 5 -16V
  • I/O Voltage: 0-5 V
  • Baud Rate: 9600-115200
  • Current consumption: 5 mA (average)
 TT-PSB-502
in stock INR 1534
GENERIC
1 1
Serial Servo Controller ( Usart & SPI) with ADC

Serial Servo Controller ( Usart & SPI) with ADC

Sku: TT-PSB-502
Be the first to review this product
₹1,534
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d5d267fdac655114a4e7f6a/images/5d5d267fdac655114a4e7f6b/5d5d264e7ebfd210c7b7c169/5d5d264e7ebfd210c7b7c169.jpg

Description of product

Description
The "Serial Servo Controller (USART & SPI) with ADC" from Rhydolabz is a very compact solution for controlling up to eight RC servos from a PC or microcontroller. Each servo speed and range can be controlled independently. This servo controller supports USART and SPI communications. The user could control the servomotors by sending the desired command  from a SPI  or USART supporting device. Servo Controller supports two communication protocols  Mini SSCII and RHYDO-SSC protocol. The built in 2 ADC Port can be used for measuring any analog voltage (ie. 2 Sensor values) and the other ADC channel is permanently connected to measure Servo Voltage. With appropriate command from host controller the module will do ADC conversion for the selected channel and send out the result via USART/SPI. This feature is extremely useful for microcontroller without Onchip ADC ( like AT89S52), and to detect the battery low condition. Up to 128 Servos can be controlled by connecting 16 Module in Parallel.

Features
  • Compact High Quality Two layer PTH PCB
  • Professional EMI/RFI Complaint PCB Layout Design for Noise Reduction
  • Support Mini SSII and RHYDO-SSC Protocol
  • USART and SPI interface with host Controller
  • 3 Channel ADC measurement using command
  • Servo volage measurement using command
  • Onboard EEPROM to save Configuration Parameters
  • RS232 to TTL conversion for PC based controlling
  • On Board Status LED Indicator
  • On Board TTL / RS232 / SPI connector
  • Can set Neutral Point for each servo
  • On Board EEPROM
  • Mini SSII Mode in default and ready to use.
Specifications
  • Number of servo ports: 8 Nos
  • Pulse Width Range: 0.25 to 2.75ms
  • Resolution: (~0.05 degree)
  • Supply voltage: 5 -16V
  • I/O Voltage: 0-5 V
  • Baud Rate: 9600-115200
  • Current consumption: 5 mA (average)
