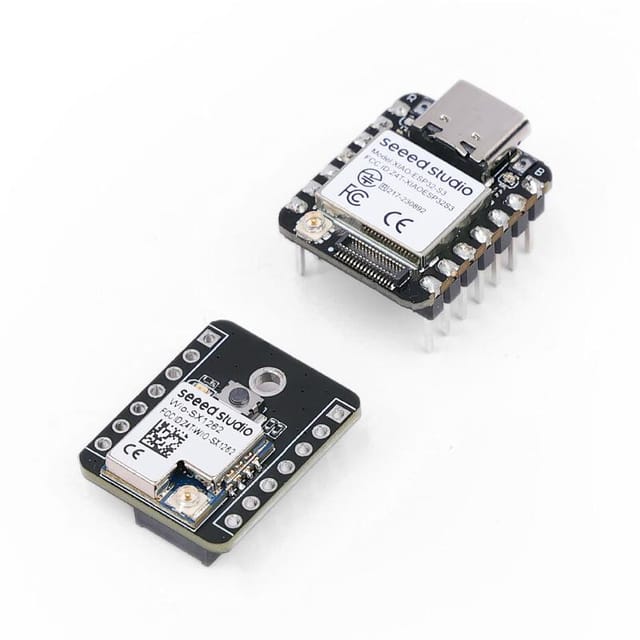

The Seeed Studio XIAO ESP32S3 & Wio-SX1262 Kit is a compact, powerful development solution tailored for Meshtastic, LoRa, and LoRaWAN applications. Featuring the ultra-small XIAO ESP32S3 MCU with dual-core processing, integrated Wi-Fi, Bluetooth 5.0, and the Wio-SX1262 LoRa module, it supports long-range communication (2–5km with LoRa, 100m+ with BLE/Wi-Fi). Pre-flashed with Meshtastic firmware, it’s ready for instant deployment.

Despite its thumb-sized form factor, it offers versatile expansion via UART, I2C, SPI, and GPIOs. With USB-C power, battery management, and compatibility with XIAO and Grove expansion boards, this kit is ideal for building wearable devices, IoT sensors, or single-channel gateways. Whether you’re a hobbyist, developer, or engineer, this cost-effective kit simplifies prototyping and field deployment in mesh networks and LPWAN environments.

Features:

1. Preloaded with Meshtastic firmware
2. Dual-core ESP32S3, up to 240MHz
3. LoRa (SX1262) support for 862–930MHz
4. Wi-Fi 2.4GHz + BLE 5.0
5. Thumb-sized (21x18mm) form factor
6. Built-in USB-C + battery charging
7. GPIO, UART, I2C, ADC expansion
8. Compatible with Grove & XIAO expansion boards

Package Includes:

1 x Seeed Studio XIAO ESP32S3

1 x Wio-SX1262 extension board

1 x Wi-Fi antenna

1 x LoRa antenna
