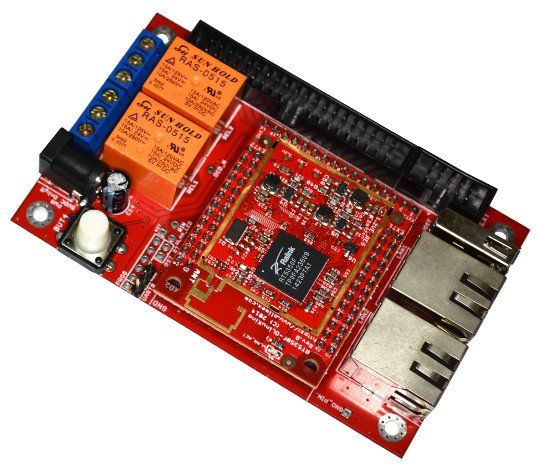

RT5350F-OLinuXino-EVB

Description of product

FEATURES
Includes RT5350F-OLinuXino and extends the design with the following features:

Barrel power jack for easier powering (5V only!)
USB 2.0 type A connector
2 x 10/100 Mbps Ethernet ports with connectors
UART connector pins at 0.1" step for easier serial debugging
2 x 10A/250VAC (15A/120VAC 15A/24VDC) relays with connectors and status LEDs
User-programmable button
UEXT connector
JTAG pinholes exposed for chain programming
EXT connector at 0.1" step with the unused RT5350 signals
27 GPIOs (24 free GPIOs)
4 grounded mounting holes
Operating temperature: -10+55C
Dimensions: (4000 x 2500)mils ~ (102 x 64)mm

RT5350F-OLinuXino comes with the following features:

RT5350 SoC – Ralink’s IEEE 802.11n draft compliant 1T1R MAC/BBP/PA/RF; 360 MHz MIPS24KEc CPU core; a 5-port integrated 10/100 Ethernet switch/PHY and a USB
32MB SDRAM
8MB SPI NAND Flash
On-board antenna
WLAN activity LED
Power LED
x3 external connectors at convenient 0.1" step with all RT5350F signals
x3 external DCDC power converters releasing internal RT5350F vreg and preventing common problem with overheating with this chip.
Two mounting holes
Suitable for embedding
Operating temperature: -10+55C
Size: (1600 x 1900)mils ~ (41 x 48)mm

DOCUMENTS
User manual

Wiki article (build instructions, software restore instructions, demo projects, etc)

Board's pinout (top view)
HARDWARE
GitHub
SOFTWARE
preloaded OpenWRT with Linux Kernel 3.18.17
COMMUNITY
OLinuXino forum for discussions and community support
Freenode #olimex irc channel for OLinuXino development discussions
Video that shows the first steps with RT5350F-OLinuXino-EVB by Leon Anavi
