Description of product

Description

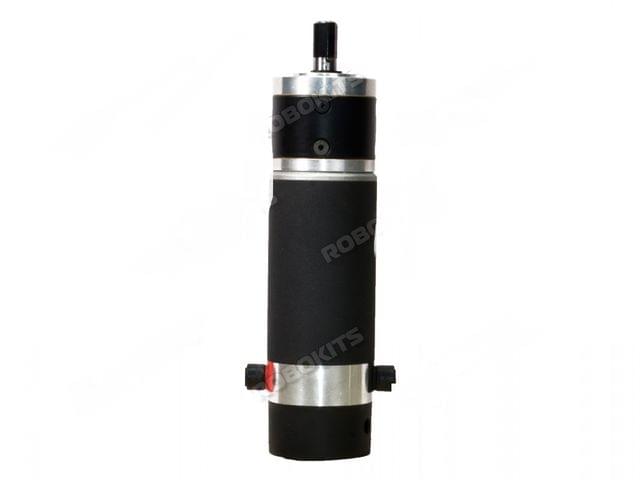

The Rhino IG52 motors are a revolution in the DC motor 24V 100W category. These industrial grade DC motor are the workhorse for high load continuous use 24V DC motor industrial applications. The Rhino IG52 motors have the following amazing features -

  • Higher Torque to Volume ratio than any comparative motor in the category.
  • Silent Operation when compared to other make gear box motor.
  • Very low no load current due to high precision gear box.
  • High safety margin of at least 1.5 times the peak wattage rating.
  • Suitable for continuous use in industrial applications
  • Shaft provided with keyway slot and key for positive coupling applications.
  • Alloy steel Shaft of 12mm provides a sturdy and durable output.

The Rhino 750 rpm IG52 motor has a rated torque of 10kgcm and a stall torque of 30kgcm. So the motor can be used uptill 30kgcm, however the motor should not heat up beyond 45 to 50 degree centigrade. The base motor of the Rhino IG52 motor is high quality industrial grade 100W 2810 rpm motor which alongwith the sturdy all metal planetary gear box provides the 750 rpm at the output shaft.

 Specifications

  • Hardened shaft diameter: 12mm

  • Shaft Length: 28mm

  • Mounting PCD of 42mm x 4nos -M5 tapped holes

  • Base Motor Diameter: 54mm

  • Gear Box Diameter: 52mm

  • Motor Length without Shaft: 190mm

  • Motor Weight: 1550 grams

  • Gear Ratio : 1:3.6

  • Rated Torque: 10kgcm (100 N-cm)

  • Stall Torque: 30kgcm (300 N-cm)

  • Gearbox Breaking Torque: 200kgcm (2000 N-cm)

  • Rated speed: 750RPM

  • Base Motor speed: 2800RPM

  • Replaceable Carbon Brushes

  • No-load current = 1.12A

  • Stall current = upto 30A(Max)
