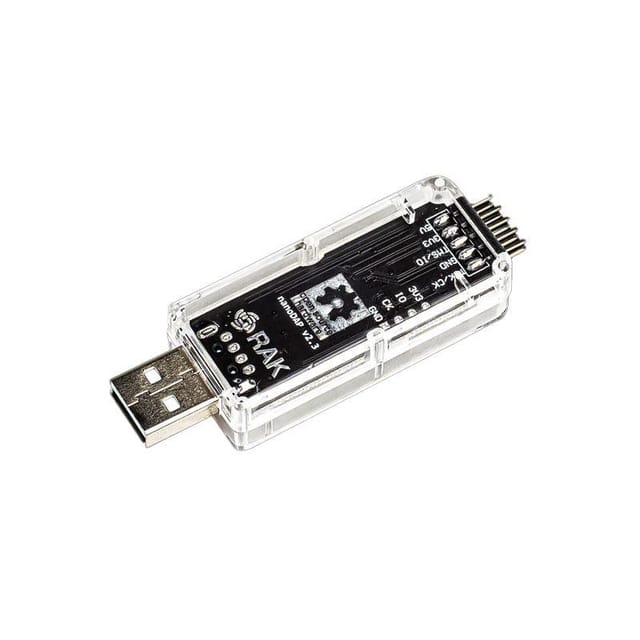

The RakWireless RAKDAP1 Debug and Flash Tool  is a compact, affordable debug and flash tool from RAKwireless, designed to seamlessly interface your PC with the SWD (Serial Wire Debug) port found on many RAKwireless IoT devices. It is an essential tool for developers needing to flash bootloaders, upload application software, or perform in-depth debugging on ARM Cortex-M microcontrollers.

At its core, RAKDAP1 is powered by an MCU running DAPLink firmware, an open-source solution that acts as a bridge between your PC and the target microcontroller. This makes the RAKDAP1 fully compatible with CMSIS-DAP, allowing smooth integration with most IDEs and toolchains used for ARM development.

Features :

1. USB interface for easy PC connection
2. Drag-and-drop programming (MSC)
3. Virtual COM port for logging (CDC)
4. CMSIS-DAP compliant debugging (HID & WEBUSB)
5. Powered by open-source DAPLink firmware
6. Works on Windows, macOS, and Linux
7. Compact (78×23×16mm), lightweight (14.4g)
8. Designed for SWD port flashing and debugging

Package Includes :

1 x RakWireless RAKDAP1 Debug and Flash Tool
