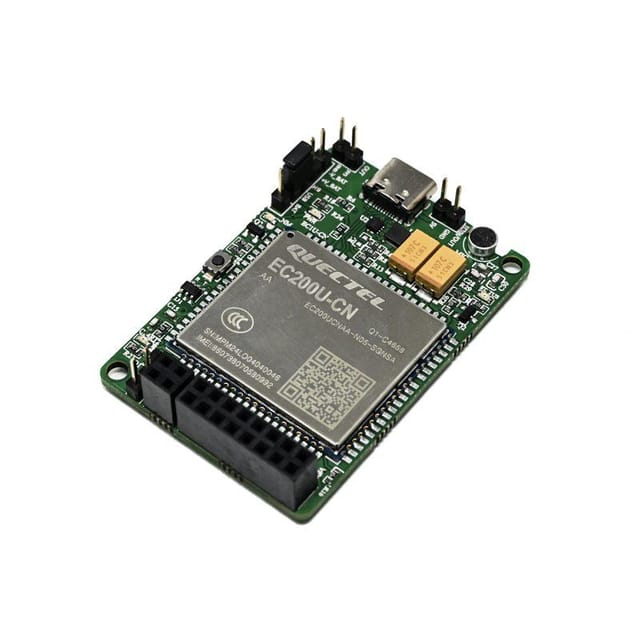

Discover the  Quectel EC200U 4G Module with GNSS, a cutting-edge solution for seamless connectivity and precise location tracking. Engineered with advanced Quectel technology, this module offers high-speed 4G LTE connectivity, ensuring reliable data transmission for a wide range of IoT and M2M applications. With integrated GNSS (Global Navigation Satellite System), it provides accurate positioning and timing information, enhancing asset tracking, fleet management, and navigation capabilities. Compact and versatile, the Tracx-1b module is designed for easy integration into various devices and systems, empowering you to unlock the full potential of connected solutions with unmatched reliability and efficiency.

Use Cases:

1. IoT Devices:  modem can be commonly used in IoT applications, such as smart metres, asset tracking, and remote sensors, to provide these devices with data transfer capabilities.
2. Wireless Routers: modem can be integrated into portable routers and mobile hotspots to create Wi-Fi networks wherever a cellular signal is available.
3. Automotive Telematics:  modem can be used in vehicles for services like GPS navigation, vehicle diagnostics, and in-car entertainment systems.
4. Point-of-Sale (POS) Systems: Mobile POS systems can use modem for wireless payment processing and data communication.
5. Remote Monitoring and Control: Industrial and infrastructure applications, such as remote monitoring of equipment or control systems, can use modems to transmit data over long distances.

Features:

1. Compatible with 2G/3G/4G network
2. Supports telephone calls, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc.
3. Supports GPS, BeiDou, Glonass, GALILEO, QZSS, Hybrid Triangulation, Wifi and Ble Positioning
4. Onboard USB and UART interface, for cloud platform communication, GNSS positioning, AT commands etc.
5. Adapting USB/UART/SIM card/GPIO/I2C/SPI control pins, easy to develop and debug, better expansibility
6. Built in voltage translator, compatible with 3.3V/5V MCU motherboards such as STM32/ESP32/Arduino
7. Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium battery)
8. 3x LED indicators, easy to monitor the operating status
9. Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card

Specifications:

1. Power Supply- Supply Voltage (Vbat): 3.7V – 4V
   USB-C: 3.7V – 5V
   Typical Supply Voltage: 3.8V


2. LTE Features- Support CAT 1 FDD & TDD
   Max 10 Mbps (DL) | Max 5 Mbps (UL)

3. Internet Protocol- Support:TCP/UDP/PPP/NTP/NITZ/FTP/HTTP/PING/CMUX/HT
   TPS/ FTPS/SSL/FILE/MQTT/MMS protocols

4. UART Interface- For AT communication & data Transmission
   Baud rates up to 921600 bps; 115200 bps by Default
   Support MAIN_RTS & MAIN_CTS Hw flow control
5. AT Commands– Compliant with 3 GPP TS 27.007, 27.005 and Quectel
   enhanced AT command
6. Antenna Interfaces- Main antenna interface (ANT_MAIN)
   GNSS antenna interface (ANT_GNSS)
7. SMS-  Text and PDU mode
   Point to point MO and MT
   SMS cell broadcast
8. Physical Dimension- 37.97mm x 55.7mm x 4mm

Package Includes:

1 x Quectel EC200U 4G/GSM Module with GPS/GNSS for IoT and M2M Applications
