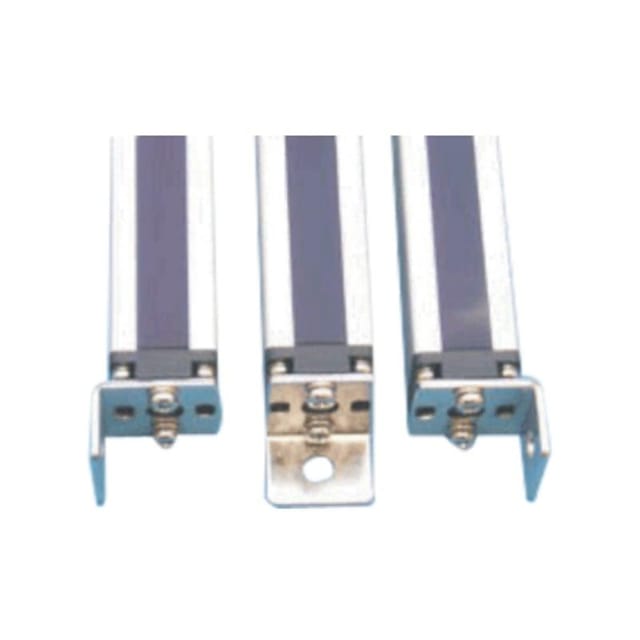

The ProRange GB20-T16 Light Curtain Sensor is a cutting-edge safety device designed to enhance workplace safety by creating protective barriers using infrared light. This technology ensures that when the light beams are interrupted, a signal is sent to halt potentially hazardous machinery, thereby reducing the risk of worker injury.

Features:

1. Detection Distance: Effective range of 0.3 to 10 m.
2. Quiescent Current: Low current draw of ≤ 100 mA for reliable operation.
3. Supply Voltage: Compatible with 12V or 24V DC.
4. Output Current: Supports output up to 300 mA.
5. Shaft Diameter: Maximum diameter of 5 mm.
6. Response Time: Fast response time of < 30 ms.
7. Light Source: Utilizes infrared emitting diode at 950 nm.
8. Effective Aperture Angle: ±5° accuracy (at ≥ 3 m).
9. Protection Rating: Rated IP64 for dust and water resistance.

Package Includes:

1 x ProRange GB20-T16 Light Curtain Sensor Pitch 10 with No. of Beams 40
