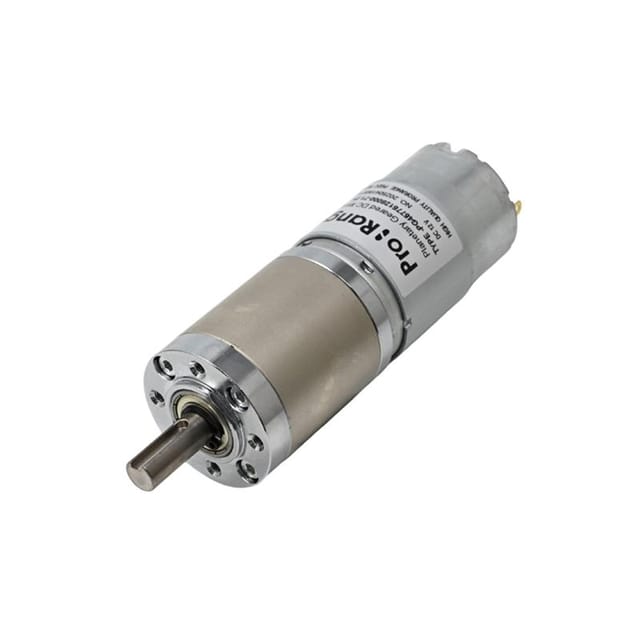

Pro-Range Planetary Gear DC Motor 12V 100 RPM 294.3 N-cm PGM45775-71.2K has the highest continuous and peak torque capability of any gearbox type. They also feature a very compact, low-weight design in their Class.

These Epicyclic Gear Train motors are very popular amongst our Robotics designers. So we must ensure them for the quality and performance of these motors. For that purpose when we receive these Planetary DC Geared motors to our warehouse at Robu.in, we get them out and start testing each motor in our lab for the extremely pushable limits they can withstand.

We made these Pro-Range Planetary Gear DC Motor 12V 100 RPM 294.3 N-cm PGM45775-71.2K available without encoders for your convenience, but you can mount the encoder easily if it is needed in your application. The compatible OE-775 hall effect Encoder can be mounted to the rear shaft of the motor which acts as a feedback encoder to provide the real-time feedback of speed and rotating position of the Motor.

This is a 12V DC planetary motor that has a gearbox of 45 mm in diameter. The planetary type gearbox of this motor has a 71.2: 1 reduction ratio which produces 100 RPM with a torque value of around 294.3 N-cm

We have 12V and 24V DC Planetary geared motors with RPM ranging from 10 to 1700 with the torque capacity ranging from 20 to 900 N-cm, do not forget to check them out, Planetary DC Geared Motor.

Compatible Motor Bracket:

1. EasyMech Universal Bracket For  Planetary DC Geared Motor (Bend)
2. EasyMech Universal Bracket For  Planetary DC Geared Motor (Straight)

Features :

1. Brushed permanent magnet DC motor
2. Variable speed and reversible
3. Planetary Gear Box
4. Standard brush life of 2000+ hours (varies by application)

Package Includes :

1 x Pro-Range Planetary Gear DC Motor 12V 100 RPM 294.3 N-cm PGM45775-71.2K
