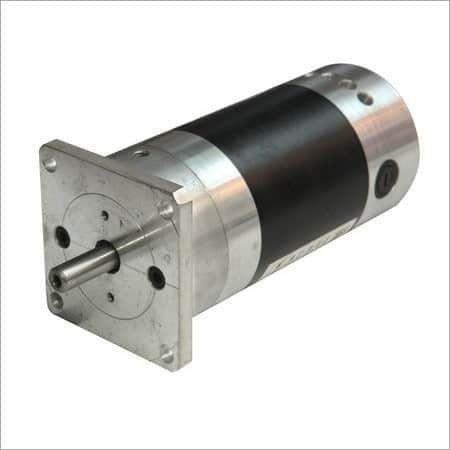

5d5ceb3006744b570d9a357d Planetary Geared motor 24V 1000RPM 100W https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d5ceb3006744b570d9a357d/images/5d5cecf2cd7dff4db36aa349/5d5cece790b74e4e703b20bf/5d5cece790b74e4e703b20bf.jpeg

Description

24V 100W Planetry geared motor with rated torque of 31.2 kgcm comes with an 2000 PPR base motor.

Specification

  • Hardened shaft diameter: 10mm
  • Shaft Length: 23mm
  • Mounting PCB of 40mm x 4 holes
  • Motor Diameter: 60mm
  • Motor Length without Shaft: 165mm
  • Motor Weight: 1345grams
  • Rated Torque: 31.2kgcm
  • Stall Torque: 118kgcm
  • No load speed: 1000RPM
  • Base Motor speed: 6000RPM
  • Base Motor count: 2000ppr
  • Geared Motor count: 12000ppr
  • Replaceable Carbon Brushes
  • No-load current = 1.1A
  • Stall current = upto 30A(Max)
TT-PSB-260
in stockINR 7552
GENERIC
1 1
Planetary Geared motor 24V 1000RPM 100W

Planetary Geared motor 24V 1000RPM 100W

Sku: TT-PSB-260
₹7,552


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d5ceb3006744b570d9a357d/images/5d5cecf2cd7dff4db36aa349/5d5cece790b74e4e703b20bf/5d5cece790b74e4e703b20bf.jpeg

Description of product

Description

24V 100W Planetry geared motor with rated torque of 31.2 kgcm comes with an 2000 PPR base motor.

Specification

  • Hardened shaft diameter: 10mm
  • Shaft Length: 23mm
  • Mounting PCB of 40mm x 4 holes
  • Motor Diameter: 60mm
  • Motor Length without Shaft: 165mm
  • Motor Weight: 1345grams
  • Rated Torque: 31.2kgcm
  • Stall Torque: 118kgcm
  • No load speed: 1000RPM
  • Base Motor speed: 6000RPM
  • Base Motor count: 2000ppr
  • Geared Motor count: 12000ppr
  • Replaceable Carbon Brushes
  • No-load current = 1.1A
  • Stall current = upto 30A(Max)
