Panasonic PAN1326C2 BLUETOOTH® RF Module

Description of product

Description

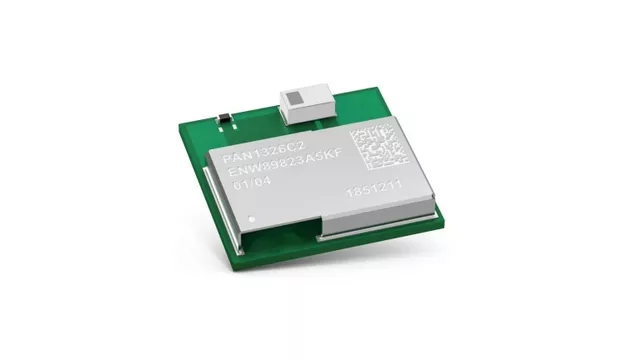

Panasonic PAN1326C2 BLUETOOTH® RF Module is a Host Controlled Interface (HCI) device featuring the TI CC2564 dual-mode Bluetooth controller. The PAN1326C is Bluetooth 4.2-compliant, and has about twice the range of other BLE solutions. The module is only 9.0mm x 9.5mm, ideal for space constrained applications. The module accommodates a PCB pad pitch of 1.3mm and as few as two layers for easy implementation and manufacturing. The module has been designed to be 100% pin‑compatible with previous generations of TI-based Bluetooth HCI modules.

Features

  • Bluetooth 4.2 compliant up to the HCI layer
  • Best-in-class Bluetooth RF performance (Tx, Rx sensitivity, blocking)
  • Dimensions: 9.0mm x 9.5mm x 1.8mm
  • Based upon Texas Instruments CC2564C
  • Interfaces: UART, GPIO, PCM

Specifications

  • Bluetooth 4.2
  • Receiver sensitivity: -90dBm
  • Output power: 8dBm
  • Power supply: 1.7V to 4.8V
  • Power consumption: Tx 40mA
  • Power consumption: Rx 20mA
  • Operating temperature range: -40ºC to 85ºC

Applications

  • Soundbars and smart speakers
  • Wearable devices
  • Smartphone accessories
  • Healthcare and fitness
