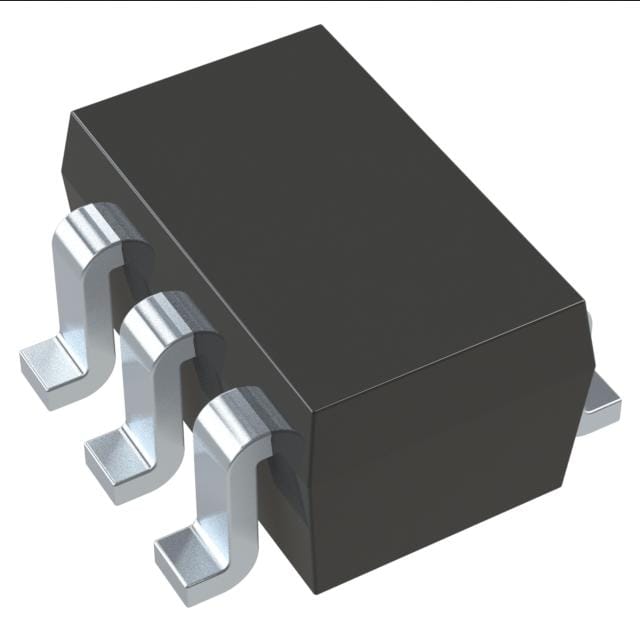

onsemi NTJD4152PT1GOSTR-ND,NTJD4152PT1GOSCT-ND,NTJD4152PT1GOSDKR-ND
Sku: TT-DKEY-NTJD4152PT1GOSTR-ND,NTJD4152PT1GOSCT-ND,NTJD4152PT1GOSDKR-ND
₹70.56
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2P-CH 20V 0.88A SC88
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 880mA |
| Rds On (Max) @ Id, Vgs | 260mOhm @ 880mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 155pF @ 20V |
| Power - Max | 272mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88/SC70-6/SOT-363 |
| Grade | - |
| Qualification | - |
