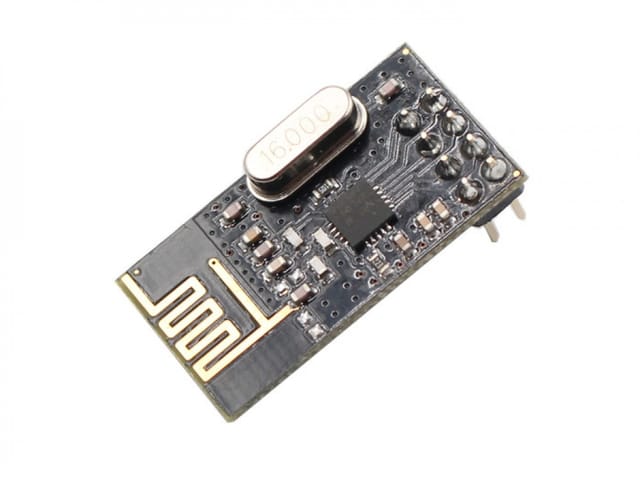

NRF24L01 Module
NRF24L01 Module

Description of product

This module based on Nordic nRF24L01, highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band. Nordic nRF24L01 integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.

Features :

•        Worldwide license-free 2.4GHz ISM band operation
•        250kbps, 1Mbps and 2Mbps on-air data-rate options
•        Enhanced ShockBurst™ hardware protocol accelerator
•        Ultra low power consumption – months to years of battery lifetime

Specification :

•        Power supply : 1.9~3.6V
•        IO port working voltage : 0~3.3v / 5v
•        Transmitting rate : 7dB
•        Receiving sensitivity : ≤ -90dB
•        Transmission range : 250m in open area
•        Dimension : 15x29mm
