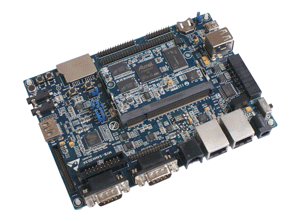

The MYD-SAMA5D36 development board is among MYD-SAMA5D3X series based on Atmel SAMA5D36 ARM Cortex-A5 processor capable of working at up to 536MHz.The board has a flexible design with one CPU module MYC-SAMA5D36 mounted on one base board which is easy for customers to design their own base board or upgrade the CPU module.  The CPU module MYC-SAMA5D36 is a tiny controller board which has the SAMA5D36 processor, 512MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash, 16MB Nor Flash and Gigabit Ethernet PHY on board and connects with the base board through one DDR2 SO-DIMM 200-pin connector. The base board has carried out a set of rich peripherals by headers and connectors including serial ports, USB Host, OTG, RS485, two Ethernet, two CAN, MMC/SD, Micro SD, LCD, HDMI, Audio, etc.

 MYC-SAMA5D36 CPU Module as Controller Board
- DDR2 SO-DIMM 200-pin Signals Consistent with Atmel's Official Board
- 536MHz Atmel SAMA5D36 ARM Cortex-A5 Processors
- 512MB DDR2 SDRAM (256MB is optional)
- 256MB Nand Flash, 4MB Data Flash, 16MB Nor Flash
- Serial ports, USB, 2 x Ethernet, 2 x CAN, RS485, SD, Audio, LCD/TSP, HDMI
- Optional 4.3 or 7 inch LCD Module, Digital Camera Module and WiFi Module
- Ready-to-Run Linux 3.6.9 and Android 4.0.4
- Supports -40 to +85 Celsius Extended Temperature Operation for Industrial Applications
