MY-WF004S SDIO WiFi Module

Description of product

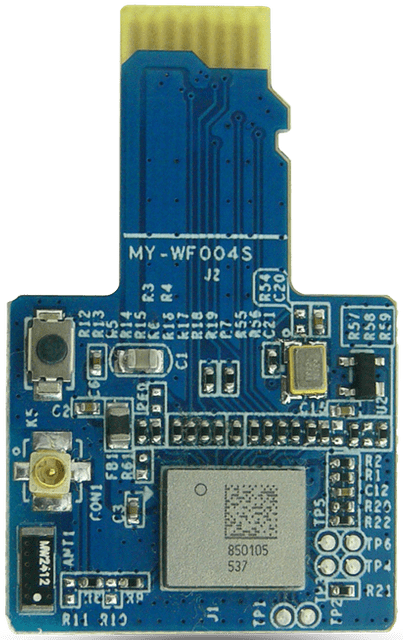

MY-WF004S SDIO WiFi Module-Welcome to MYIR

The MY-WF004S is an SDIO interface based WiFi Module released by MYIR specially for working on MYIR's ARM development boards. It isrelying on the WiFi IEEE 802.11b/g/n standards and its network speed can achieve 150Mbps when using the IEEE 802.11n standard. It is connected with other terminals through an SD card slot or TF card slot to build a wireless network.

MY-WF004S SDIO WiFi Module-Welcome to MYIR

MY-WF004S Dimension Chart

Features

Item

Parameters

Dimensions 19.00mm (L) * 14.00mm (W) * 5.00mm (H)
Interface SDIO
Frequency Band 2.4 – 2.484GHz
Wireless standard IEEE 802.11b: 11Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11n: 150Mbps
Transmission power 17dBm
Modulation type OFDM/DSSS/DBPSK/DQPSK/CCK/16-QAM/64-QAM
Work patterns Ad-Hoc Infrastructure
Wireless safety 16/128/152 bits WEP
WPA/WPA2
WPA-PSK/WPA2-PS
Working temp. -20 ~ +65°C
Storage temp. -40 ~ +85°C
Relative humidity 10% ~ 95%
OS support Linux

Board Products Supporting List

The MY-WF004S SDIO WiFi Module can support working with following MYIR's board products:



NO.

Processor

Products

1 Atmel SAM9G15 MYD-SAM9G15 / MYD-SAM9G15-V2
2 Atmel SAM9G25 MYD-SAM9G25 / MYD-SAM9G25-V2
3 Atmel SAM9G35 MYD-SAM9G35 / MYD-SAM9G35-V2
4 Atmel SAM9X25 MYD-SAM9X25 / MYD-SAM9X25-V2
5 Atmel SAM9X35 MYD-SAM9X35 / MYD-SAM9X25-V2
6 TI AM335x MYD-AM335X
7 MYD-AM335X-Y
8 MYD-AM335X-J
