Description

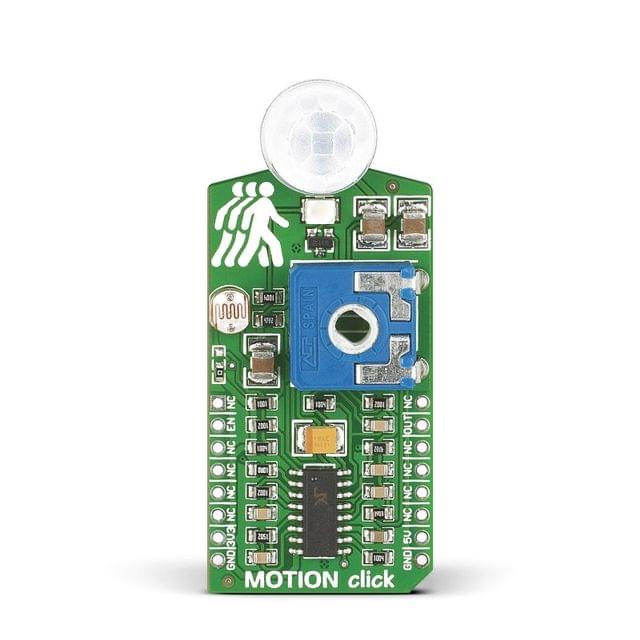

MOTION click is a motion detector sensitive only to live bodies. It carries PIR500B, a pyroelectric sensor. The click is designed to run on 3.3V power supply only. It communicates with the target MCU over RST and INT pin on the mikroBUS™ line.

How it works

MOTION click carries PIR500B, a pyroelectric sensor which generates a voltage when exposed to infrared radiation emitted by live bodies (the white plastic Fresnel lens covering the sensor filters visible light).

The signal is processed by a BISS0001 PIR sensor controller which sends an interrupt to the MCU through the mikroBUS INT (out) line.

An onboard potentiometer lets you adjust the detecting range of the sensor (up to 4 meters).

Night only mode

The click also has a night only mode—resoldering a zero-ohm jumper activates the onboard photo resistor which acts as a light-sensitive switch.

You can also switch the sensor ON and OFF by sending a signal from the MCU through the mikroBUS RST pin.

Application

MOTION click is ideal for alarm systems, light switch controllers, and similar systems where human presence needs to be detected.

Key features

  • Up to 4m detection range
  • Night only mode
  • PIR500B pyroelectric sensor
  • BISS0001 PIR sensor controller
    • Excellent noise immunity
  • Interface: RST, INT pins
  • 3.3V power supply

Specification

TypeMotion
ApplicationsMeasuring strength of different magnets. Measuring distance of a magnet from sensor (suitable for industrial controllers, joysticks, or any other applications for contactless linear or rotary position sensing)
On-board modulesPIR500B a pyroelectric sensor
Key FeaturesOnboard photo resistor for night-only mode. Adjustable detecting range (up to 4 meters)
Key BenefitsSensitive only to live bodies. You can switch it ON and OFF from the MCU
InterfaceGPIO
Input Voltage3.3V or 5V
CompatibilitymikroBUS
Click board sizeL (57.15 x 25.4 mm)

Documentation

Pinout diagram

This table shows how the pinout on MOTION click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

NotesPinMikrobus logo.png
mikroBUStm
PinNotes
Not connectedNC1ANPWM16NCNot connected
Retriggerable and non-retriggerable mode select MODE2RSTINT15OUTPUT  Detector output pin
Not connectedNC3CSTX14NCNot connected
Not connectedNC4SCKRX13NCNot connected
Not coneectedNC5MISOSCL12NCNot connected
Not connectedNC6MOSISDA11NCNot connected
Power supply+3.3V73.3V5V10+5VPower supply
GroundGND8GNDGND9GNDGround

    TT-MK-MIKROE-1589
    in stockINR 1319.5
    MIKROELECTRONICA
