MC1458DT-STMICROELECTRONICS-Operational Amplifier, 2 Amplifier, 1 MHz, 0.8 V/µs, ± 15V, SOIC, 8 Pins.MC1458DT is a high-performance, dual-operational amplifier with a wide input common-mode voltage range. It is intended for a wide range of analogue applications. The high gain and wide range of operating voltages provide superior performance in integrators, summing amplifiers, and general feedback applications. It is used in applications such as summing amplifiers, voltage followers, integrators, active filtering, and function generators.

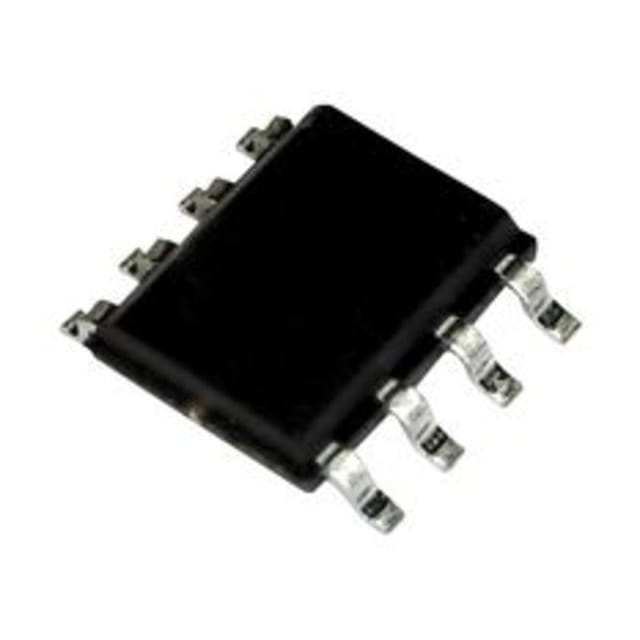

Note: Images for reference only.

Specifications:

No. of Channels:: 2Channels
Gain Bandwidth Product:: 1MHz
Slew Rate Typ:: 0.8V/µs
Supply Voltage Range:: 15V
IC Case / Package:: SOIC
No. of Pins:: 8Pins
Amplifier Type:: General Purpose
Input Offset Voltage:: 1mV
Input Bias Current:: 30nA
IC Mounting:: Surface Mount
Operating Temperature Max:: 70°C

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MC1458DT-STMICROELECTRONICS-Operational Amplifier, 2 Amplifier, 1 MHz, 0.8 V/µs, ± 15V, SOIC, 8 Pins
