Description:

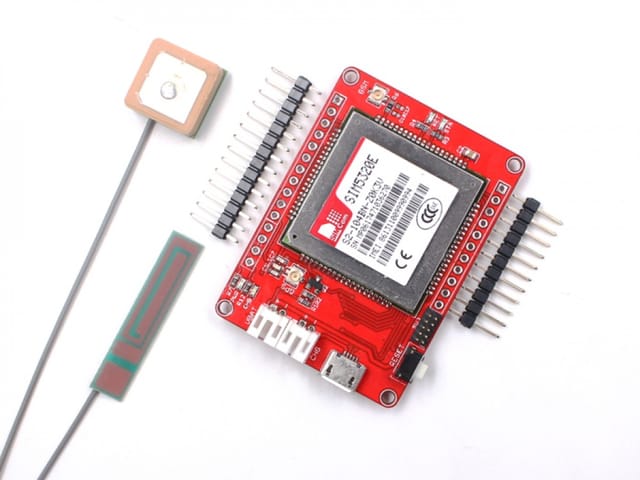

Maduino Zero SIM5320 is an IoT (Internet of things) Solution based on the 32-bit Atmel’s SAMD21 MCU and 3G GPRS/GSM GPS module SIM5320. It integrated a micro Controller ATSAMD21G18, 3G GRRS/GSM module SIM5320. The Maduino Zero SIM5320 based on the Arduino, users can program it with Arduino IDE, which is very easy especially suit for the none-programmers. There are also guide for users to learn how to create the first IoT project with this board, with which the starters can learn the hardware and programming skill quickly. With this board, you will easy to add text, SMS, and data to your project. It is good for your smart home project or M2M and so on.

Features:

• BAT Input Voltage: 3.4-4.2V
• ATSAMD21G18, 32-Bit ARM Cortex M0+
• Micro SIM connector
• Integrated Power Control System
• Support AT Command
• Quad-band 850MHz GSM, 900MHz EGSM, 1800MHz DCS, 1900MHz PCs - connect onto any global GSM network with any 2G SIM
• European Version - with dual-band UMTS/HSDPA 900/2100MHz WCDMA + HSDPA
• Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps
• Send and receive SMS messages
• Fully-integrated GPS (Qualcomm PM8015 GPS)
• Support USB power charge
• Support Micro SD Card
• Interface: I2C/SPI/UART/18*GPIO
• Arduino compatible
• Working Temperature: -40 – 85℃
• Size: 40mm*55mm

Package List:

• 1 x Maduino Zero SIM5320

Documents:

• Schematic
• Hardware Design
• SIM5320 AT Command
