The LSM303AGR is a low-power, high-performance system-in-package integrating a 3D digital linear accelerometer and a 3D digital magnetic sensor. It offers selectable acceleration full scales of ±2g/±4g/±8g/±16g and a magnetic field dynamic range of ±50 gauss. With interfaces including SPI and I2C, it supports efficient communication. The device features programmable interrupts for free-fall, motion detection, and magnetic field detection, along with embedded functions like self-test, temperature sensor, and FIFO buffer. Operating from -40°C to +85°C, the LSM303AGR is ideal for applications in motion tracking, tilt-compensated compasses, and vibration monitoring.

Features:

1. 3D Sensing: 3 magnetic field channels and 3 acceleration channels.
2. Magnetic Range: ±50 gauss for magnetic field detection.
3. Low Power: Power-down and low-power modes for energy efficiency.
4. Interrupts: Programmable interrupts for free-fall, motion, and magnetic field detection.
5. Embedded Features: Self-test, temperature sensor, FIFO buffer.

Package Includes:

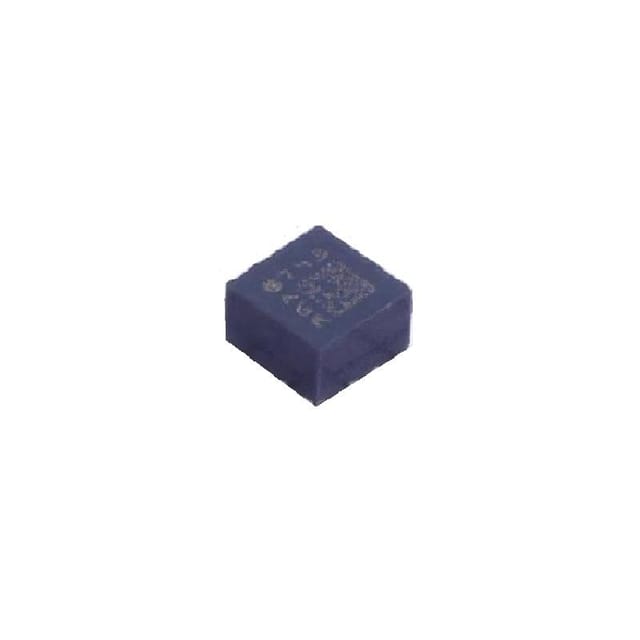

1 x LSM303AGRTR STMicroelectronics LGA-12(2×2) Accelerometer LGA-12(2×2) Accelerometers ROHS
