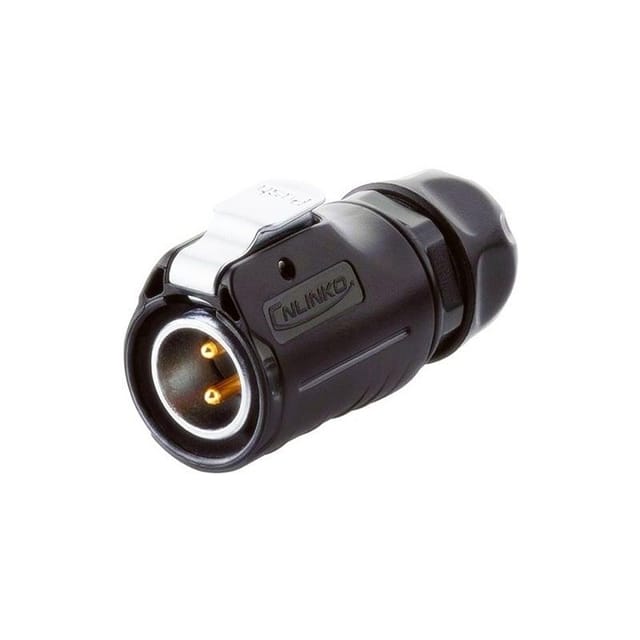

This is LP-20 Male 2 Pin Soldering type Power Plug with Plastic+Metal Shell IP67 500V 20A. The LP series is one of the best-selling series waterproof connectors made with high-performance engineering plastics. The quick plug design allows one-hand plug/unplug. The copper needle of the power is adopted with gold plated technology, which can resist corrosion and suitable for high low temperatures.

LP series connector adopts fluid dynamic design, and the one-button device is pressed and fast-swapped to prevent the case failure factor caused by improper manual operation at the use end, which effectively increases the service life of the product. LP Series power supplies and signals are used alone or in combination to provide a solution for multi-industry device connectivity. Such as: audio-visual equipment, medical equipment, industrial control, detection and measurement equipment, AV systems, radio and television and communications industries.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Design snap lock ensures stable and security firm.
2. Humanization design achieved blind operation.
3. Socket and internal made of zinc alloy, with well protected electromagnetic and radio frequency interference.
4. Gold-plating; high strength corrosion resistance and electrical conductivity.
5. Shell made of material PBT, stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
6. IP65/IP67 when mated.
7. Both cable connector to cable connector and cable connector to panel mounting are also available.

Package Includes:

1 x LP-20 Male 2 Pin Soldering type Power Plug with Plastic+Metal Shell IP67 500V 20A
