The Livox Horizon HAP LiDAR is an automotive-grade LiDAR sensor specifically engineered for advanced driving assistance systems (ADAS) and autonomous vehicles. Designed with precision and reliability in mind, the Horizon HAP delivers superior performance and durability, making it a crucial component for smart driving solutions.

Note: For more technical details datasheet is attached.

Useful Links:

https://www.livoxtech.com/avia/downloads

Features:

1. Detection Range: 190m @ 10% reflectivity (up to 450m in low-light conditions)
2. Field of View: 70.4° (Horizontal) x 77.2° (Vertical) for non-repetitive scanning, 70.4° x 4.5° for repetitive line scanning
3. Triple Echo & Dual Scanning Modes: Supports triple-echo and dual scanning for efficient, high-precision mapping
4. Point Rate: 240,000 points/s (first return), 480,000 points/s (dual return), 720,000 points/s (triple return)
5. Range Precision: 2 cm, Angular Precision: < 0.05º
6. Data Latency: ≤ 2 ms
7. IMU: Built-in BMI088 for spatial posture and acceleration data
8. Power Consumption: 8W (non-repetitive), 9W (repetitive) (Startup: 16W)
9. Operating Temperature: -4°F to 149°F (-20℃ to 65℃)
10. IP Rating: IP67 for water and dust protection
11. Weight & Size: 498g, 91 x 61.2 x 64.8 mm (without cables)
12. Data Port: 100 Mbps Ethernet
13. Applications: Ideal for powerline surveying, forestry mapping, mobile surveying, and smart city applications
14. Affordable Mass Production: High-performance-to-price ratio with Livox’s efficient manufacturing process.

Package Includes:

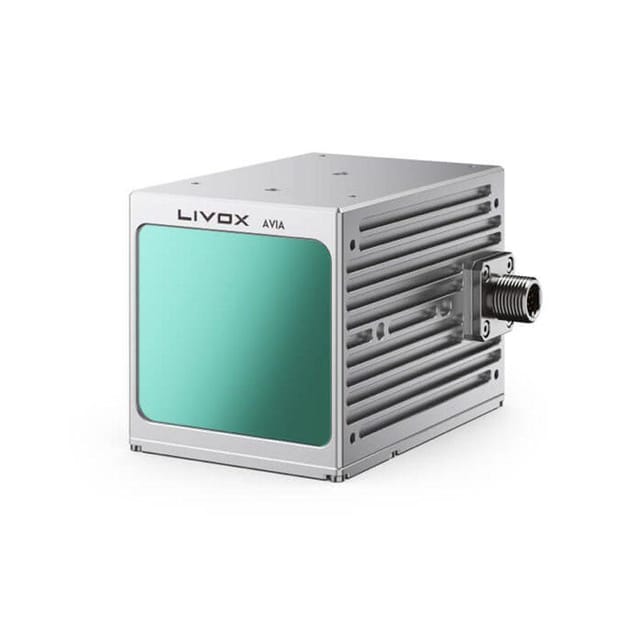

1 x Livox Avia LiDAR v1.0

1 x power adapter 2.0

1 x Lens cleansing cloth

1 x Hexagon L Wrench

1 x Wire Package
