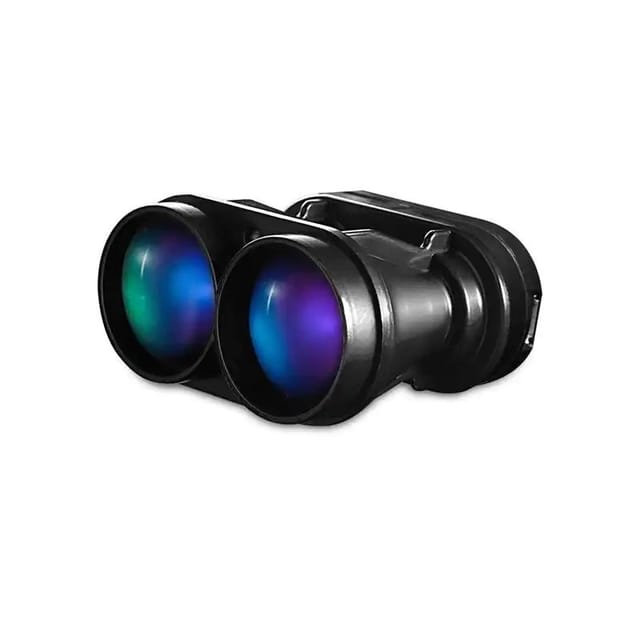

The SF30/D microLiDAR® is our most powerful sensor. This 200m sensor is known for its high speed, and accuracy and performs well in even the most challenging conditions

The Lightware SF30/D (200m) microLiDAR is an advanced sensor specifically developed for precise distance measurement and object detection in a compact form factor. With an impressive maximum range of 200 meters, it utilizes LiDAR technology to emit laser pulses and accurately calculate distances based on the reflected light. The SF30/D offers high-resolution measurements, ultra-fast response times, and a wide field of view, making it ideal for applications in autonomous vehicles, drones, surveillance systems, and industrial automation.

Applications:

1. AGL (Altitude above ground level)
2. Position hold
3. Terrain following
4. Detect and avoid
5. Assisted take-off and landing
6. Scanning

Features:

1. Key features: Multiple return signals, signal strength, noise measurement, etc.
2. Measuring range: 0.2 … 200 m (80% reflective, large target)
3. Size: 30 x 56.5 x 50 millimeters
4. Weight: 35 grams
5. Measuring speed: 49 to 20000 readings per second (configurable)
6. Interfaces: Serial, I2C, USB, Analog, and Alarm output
7. Integration: User APIs, LightWare Studio
8. Safety: Eye-safe laser emission Class 1M
9. Environmental: Open frame, no IP rating

Useful Links:

• Product Guide
• Quickstart guide
• 3D CAD files: SF30/D housing assembly
• 3D CAD files: SF30/D mounting bracket

Support software

• LightWare Studio
• SF30/D firmware release notes

Accessories and options

• SF30/D aluminum stand kit
• SF30/D communication cable
• SF30/D micro USB cable

Package Includes:

1 x  SF30/D microLiDAR® sensor

1 x  a communications cable
