673595812c70ab003ec416ec KS-03-101-Key Switch 12mm 2 position(ON-OFF) https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/673595832c70ab003ec416ef/r133278-1.jpg

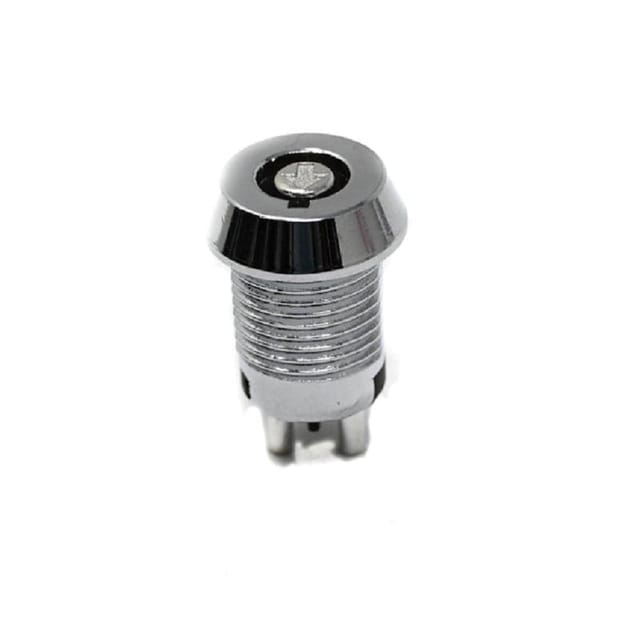

A quality product containing parts manufactured from brass, steel and alloy materials. The barrel is finished in chrome with a polished bezel. The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze. The barrel is 12mm diameter across the threads. Overall length of lock when assembled is 23.5mm.


Specifications:

  1. Rating: 1A 125VAC/0.5A 250VAC
  2. Withstand Voltage:AC500V(50Hz) 1min 2mA
  3. Contact resistance: ≤100mΩ
  4. Insulation resistance: ≥500mΩ(500VAC)
  5. Mechanical Life: 5,000 times
  6. Key position: Key removable at one position or both position

Package Includes:

1 x KS-03-101-Key Switch 12mm 2 position(ON-OFF)

TT-RB-R133278
in stock INR 101
1 1

KS-03-101-Key Switch 12mm 2 position(ON-OFF)

Sku: TT-RB-R133278
₹101


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

A quality product containing parts manufactured from brass, steel and alloy materials. The barrel is finished in chrome with a polished bezel. The lock is a separate item with a chrome finished body that fits into the barrel, after mounting, in any one of four positions. The tumblers of the lock are made from brass, steel and bronze. The barrel is 12mm diameter across the threads. Overall length of lock when assembled is 23.5mm.


Specifications:

  1. Rating: 1A 125VAC/0.5A 250VAC
  2. Withstand Voltage:AC500V(50Hz) 1min 2mA
  3. Contact resistance: ≤100mΩ
  4. Insulation resistance: ≥500mΩ(500VAC)
  5. Mechanical Life: 5,000 times
  6. Key position: Key removable at one position or both position

Package Includes:

1 x KS-03-101-Key Switch 12mm 2 position(ON-OFF)
