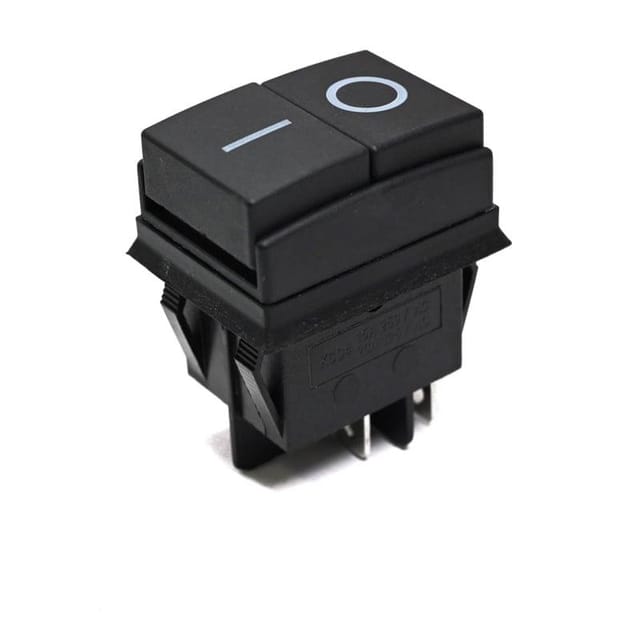

KCD2-2-201P-Double Pole Rocker Switch DPST(ON-OFF) rocker switch offer a high switching current in a compact design. It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing. They have high quality for long life at heavy loads and industry-standard mounting dimensions. This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

Specifications:

1. Housing: Nylon 66
2. Button: Nylon 66
3. Terminal: Brass with sliver plated
4. Rating: 20A 125VAC/15A 250VAC
5. Housing color: Standard black
6. Switch Operation: (ON-OFF)
7. Contact configuration: DPST
8. Contact Resistance: 50 mΩ max
9. Operating Temperature: -25℃~+120℃
10. Insulation Resistance: 100mΩ min (500VDC)
11. Electrical Life: ≥ 10,000 Cycles
12. Dielectric strength: 1500VAC 1 minute
13. Mechanical Life: ≥ 100,000 Cycles
14. Certification: CE, CQC, SGS
15. OEM or ODM: Available

Package Includes:

1 x KCD2-2-201P-Double Pole Rocker Switch DPST(ON-OFF)
