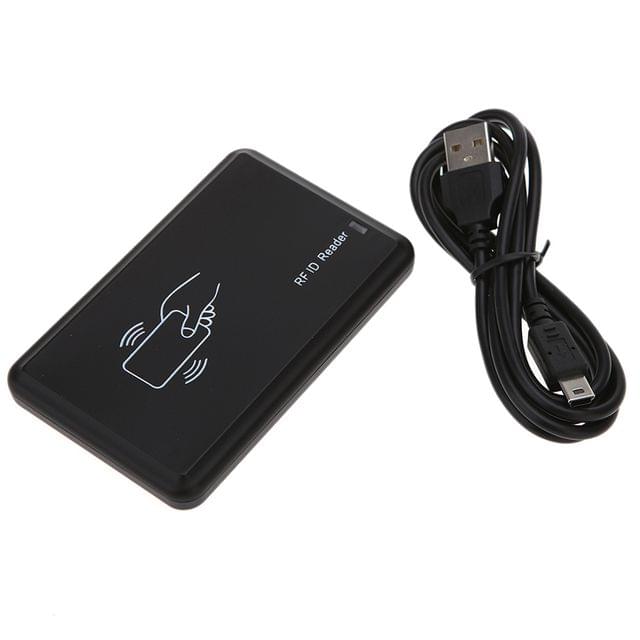

JT308 is a compact simple and fast 125Khz RFID Reader with a USB interface. It reads the ID number from the EM 4100 card or a compatible card. After detecting the card, the card number is sent directly via the USB interface, just like the entry number from the USB keyboard. JT308 RFID Reader is a standard HID devices, means you don't need to install any driver, the code can be read into any input editor. For example: Notepad, WORD and other text editing software.
USB interface, no driver required
Reads the EM card inside the ID number and send it to the computer via the USB interface
The output format can be selected by management cards
Support for EM4100 cards
Power input: USB (from a PC)
Interface: USB, 106bit / s, no additional driver required.
Reading distances up to 8 cm
Frequency: 125 KHz
Temperature: -30 degrees Celsius to +60 degrees Celsius
Humidity: 5% -95% Relative humidity No condensation Noise
Visual signaling: LED output and buzzer
Output card format: 8H10D
USB cable length: approx. 120 cm / 47in
Dimension (mm) : 95 x 61 x 10
Weight: 33 grams
RFID Tag / Card is not included with this product
