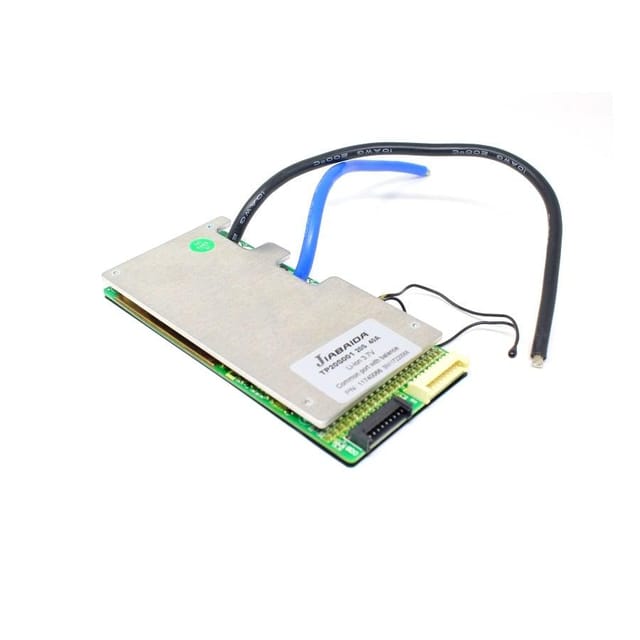

The JIABAIDA (JBD) NMC 20S 74V 40A Battery Management System (BMS) is a sophisticated electronic solution designed to oversee, protect, and optimize lithium-ion battery packs employing Nickel Manganese Cobalt (NMC) chemistry. Tailored to meet the demands of various applications, from electric vehicles to energy storage systems, this BMS ensures precise monitoring, proactive protection, and efficient management of battery performance.

Features:

1. Individual Cell Monitoring
2. Voltage Balancing
3. Comprehensive Protection
4. Advanced Algorithms
5. High Accuracy
6. Temperature Monitoring
7. Communication Capabilities

Specifications:

1. Battery Chemistry: Nickel Manganese Cobalt (NMC)
2. Battery Configuration: 20 series cells
3. Nominal Voltage: 74 volts
4. Maximum Continuous Discharge Current: 40 amps
5. Cell Voltage Monitoring Range: 0 volts to 4.2 volts per cell
6. Temperature Monitoring Range: -40°C to 85°C
7. Voltage Balancing Accuracy: ±5 millivolts (mV)
8. Current Balancing Accuracy: ±50 milliamps (mA)

Package Includes:

1 x JIABAIDA (JBD) NMC 20S 74V 40A Battery Management System- TP20S001 20S 40A
